Ample Avonlea

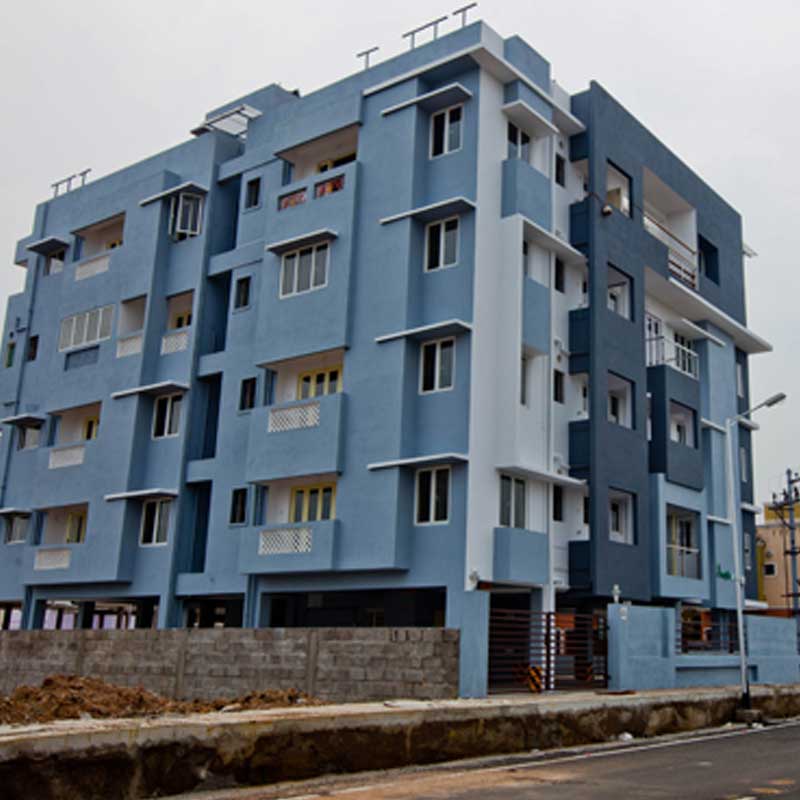

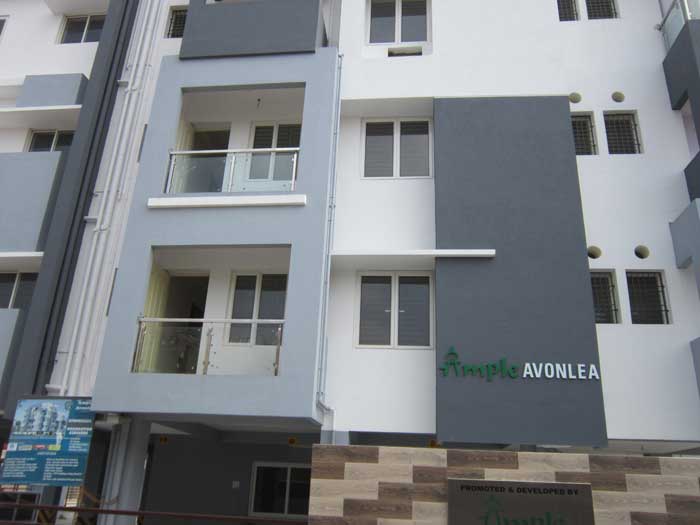

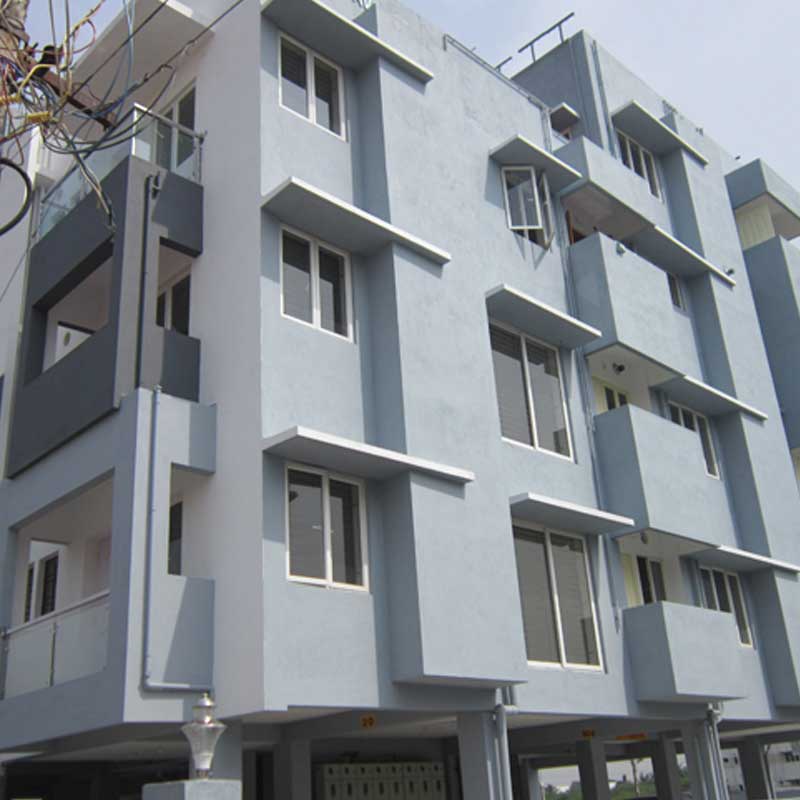

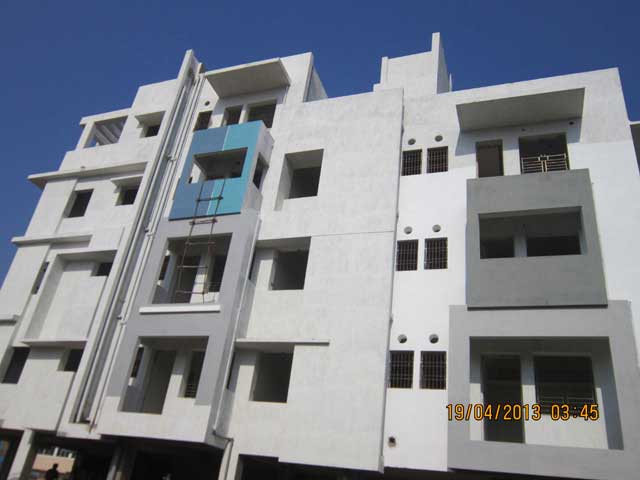

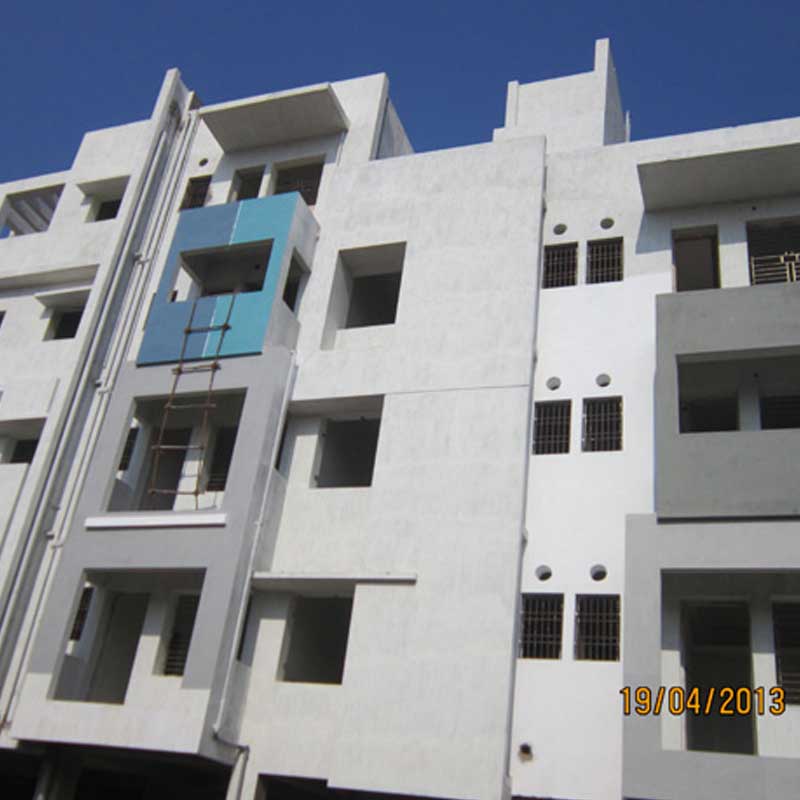

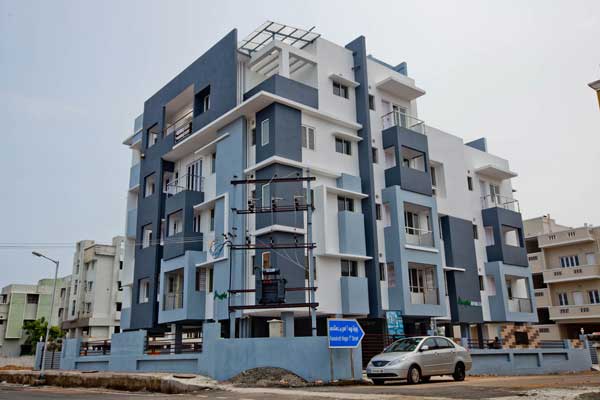

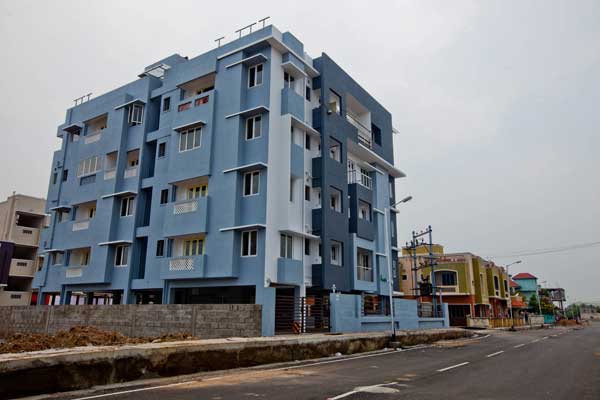

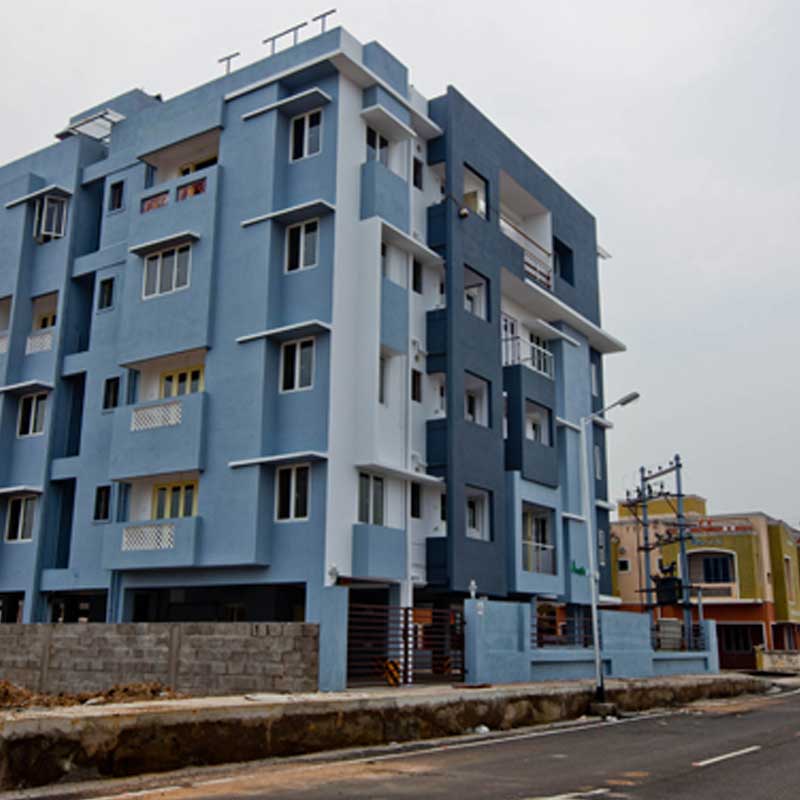

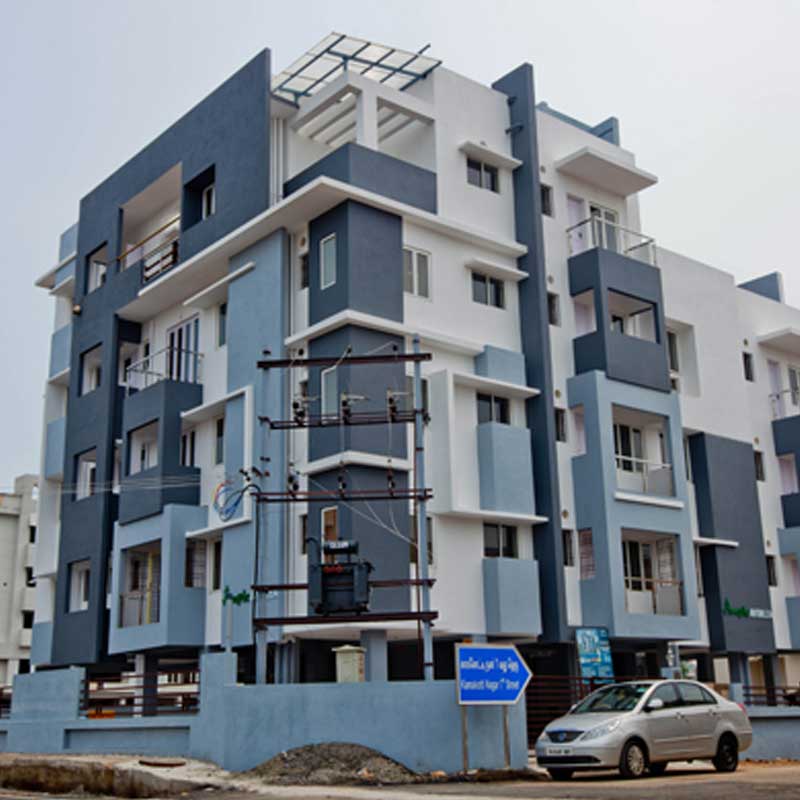

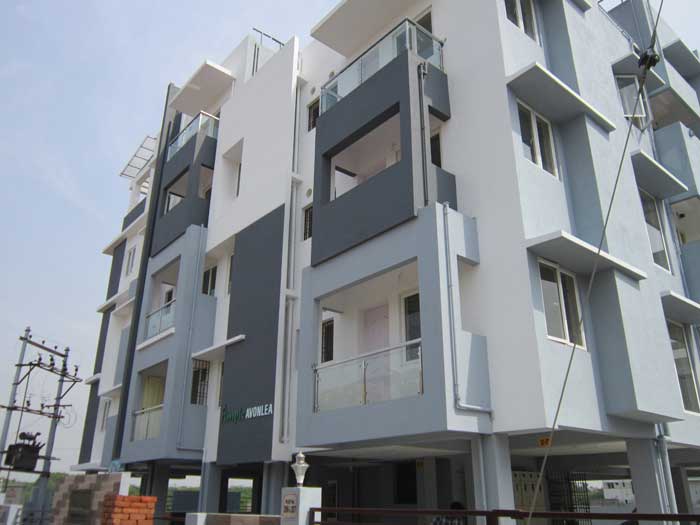

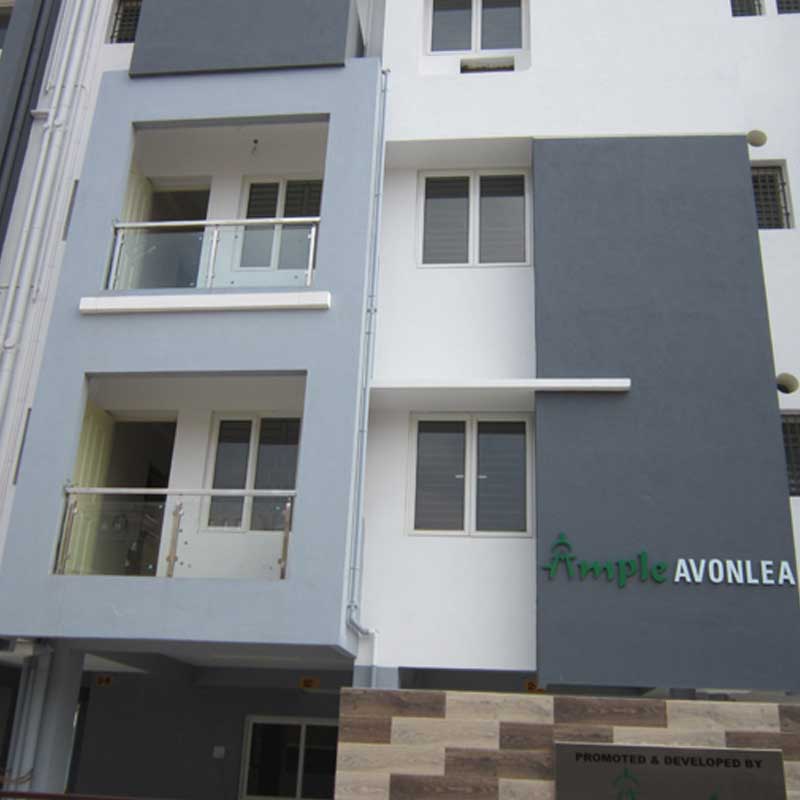

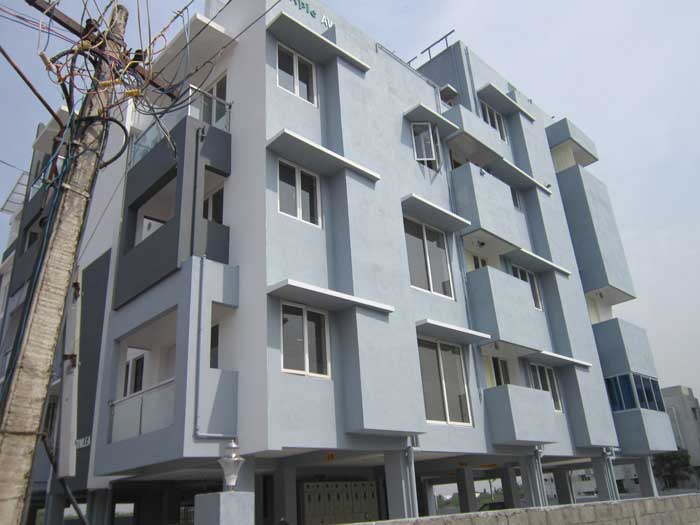

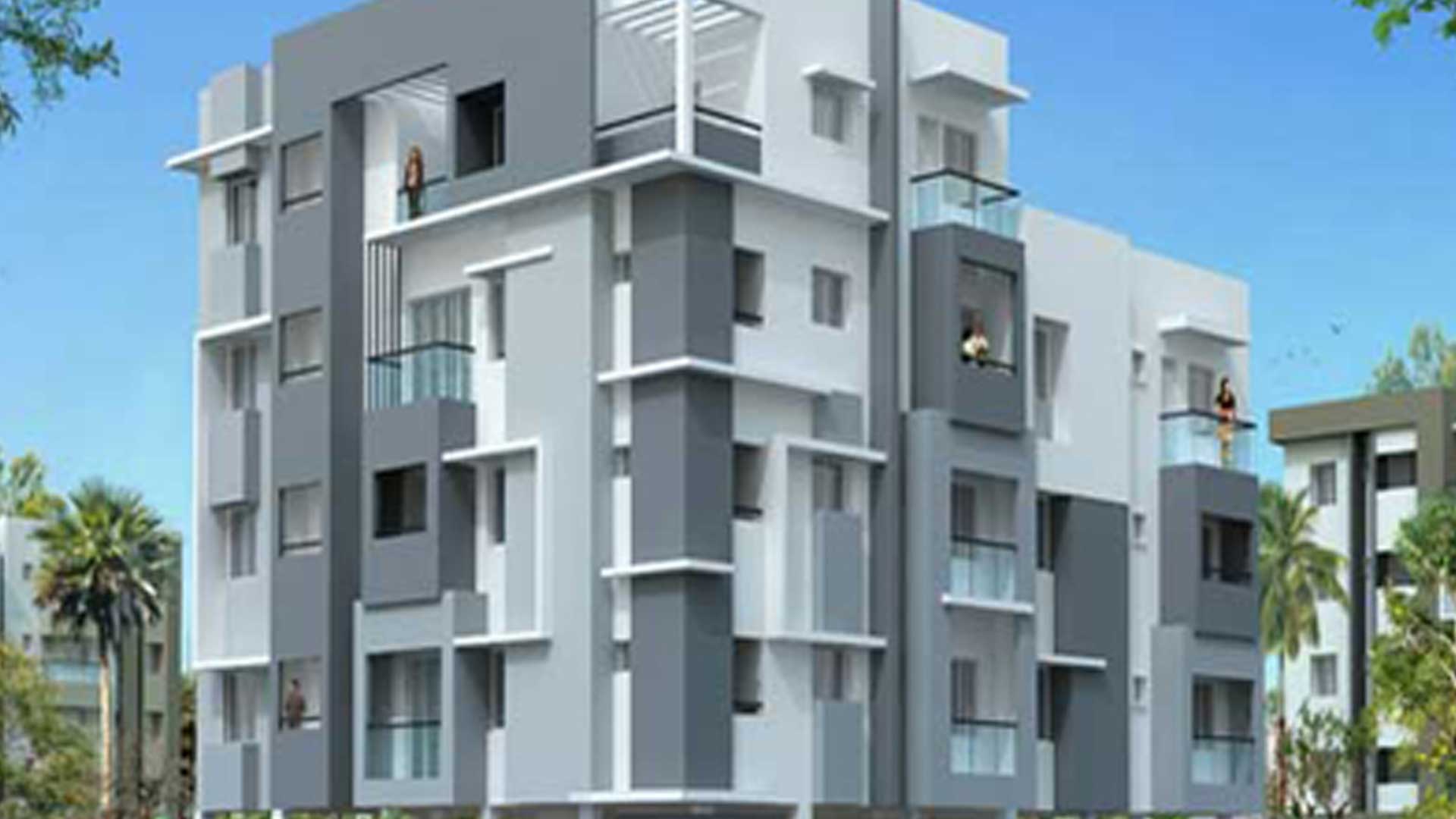

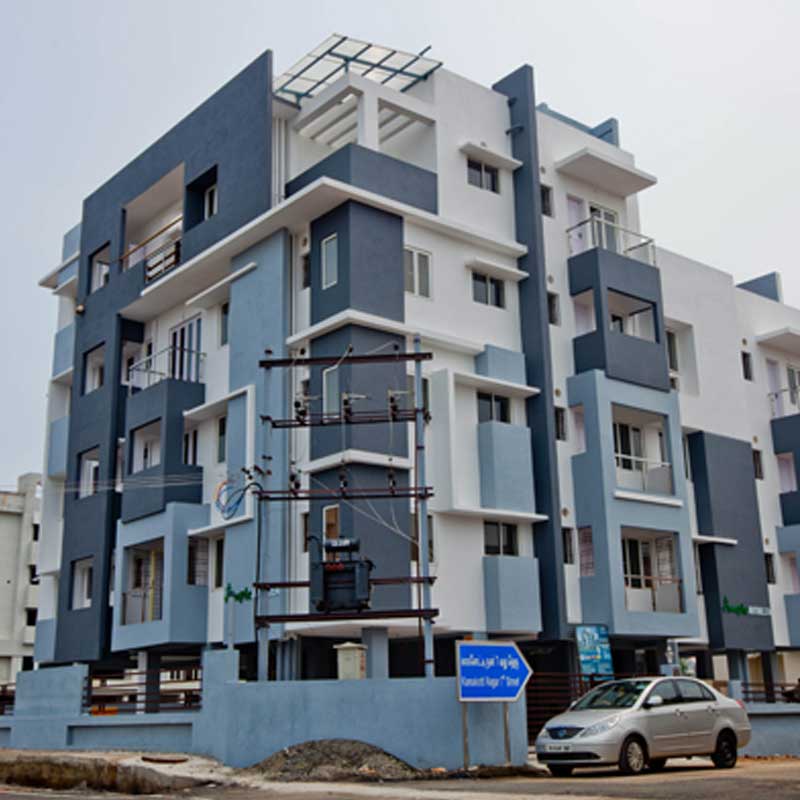

Elevation
Site Address

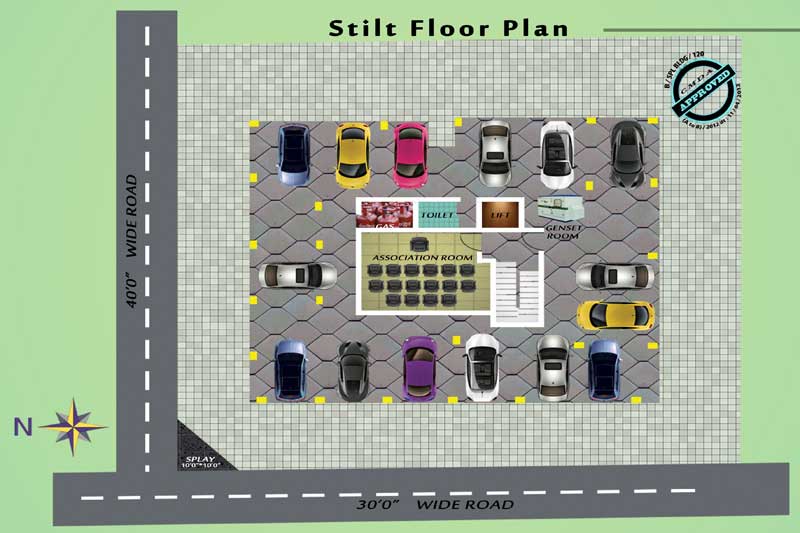

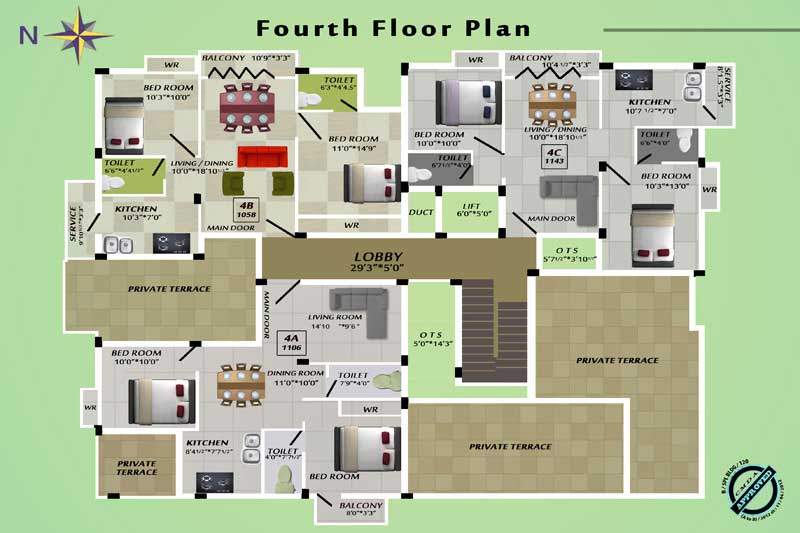

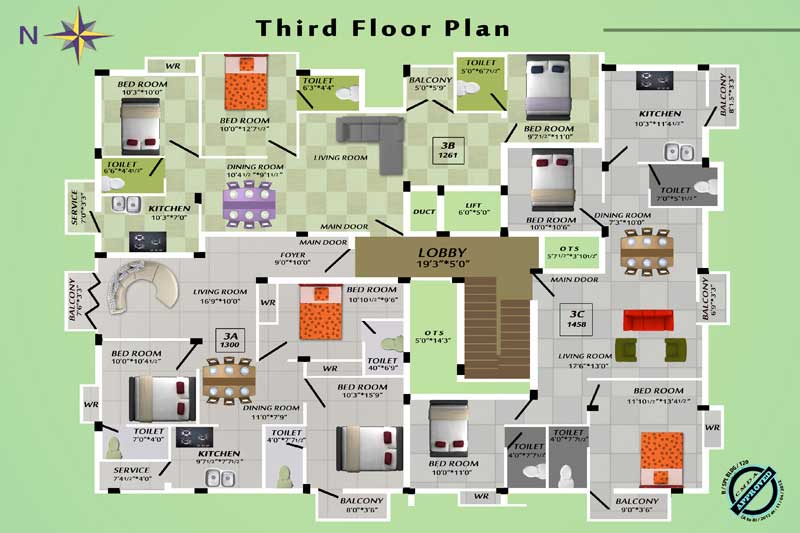

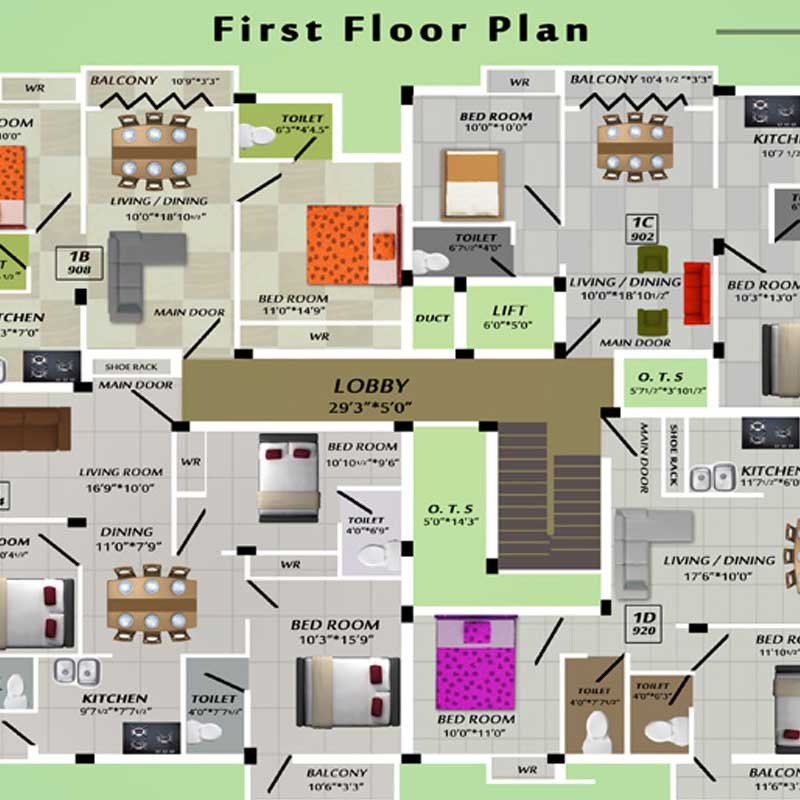

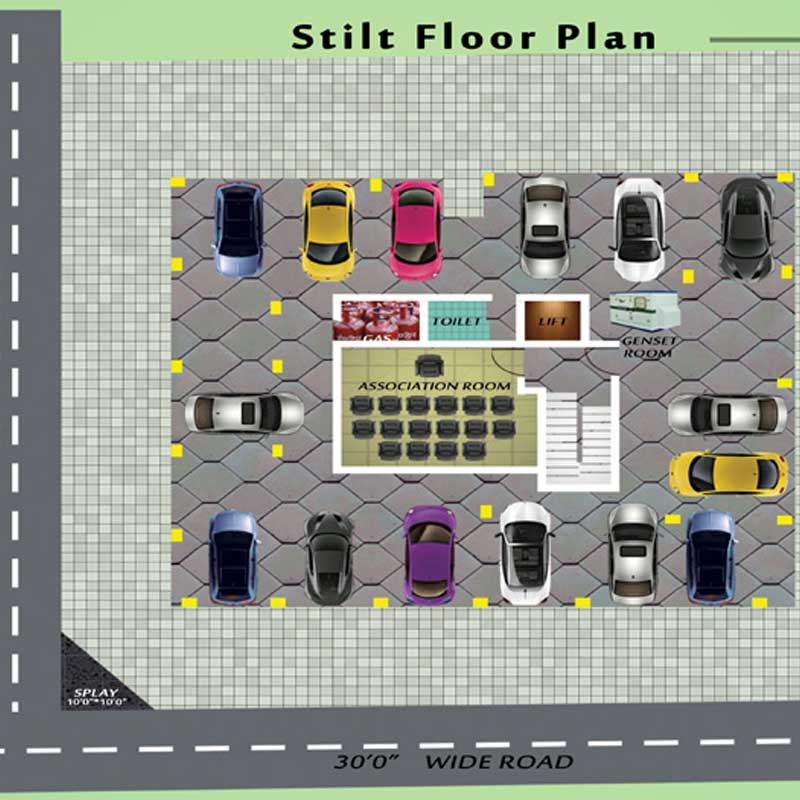

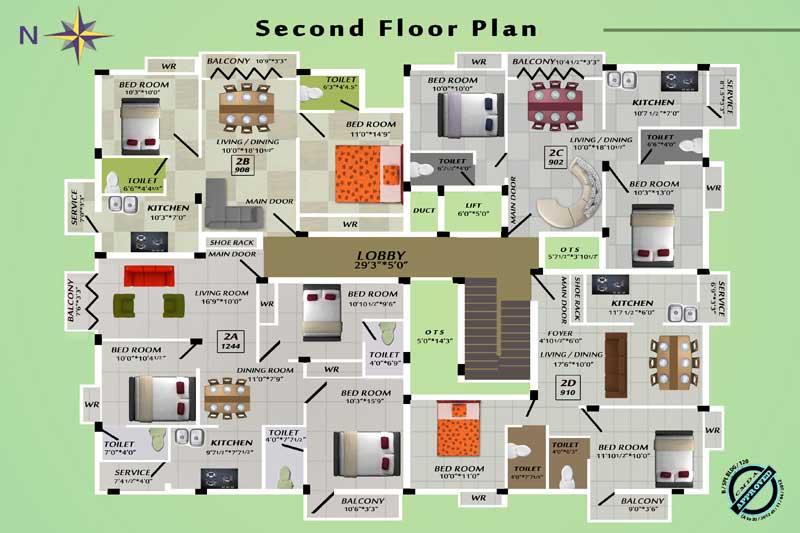

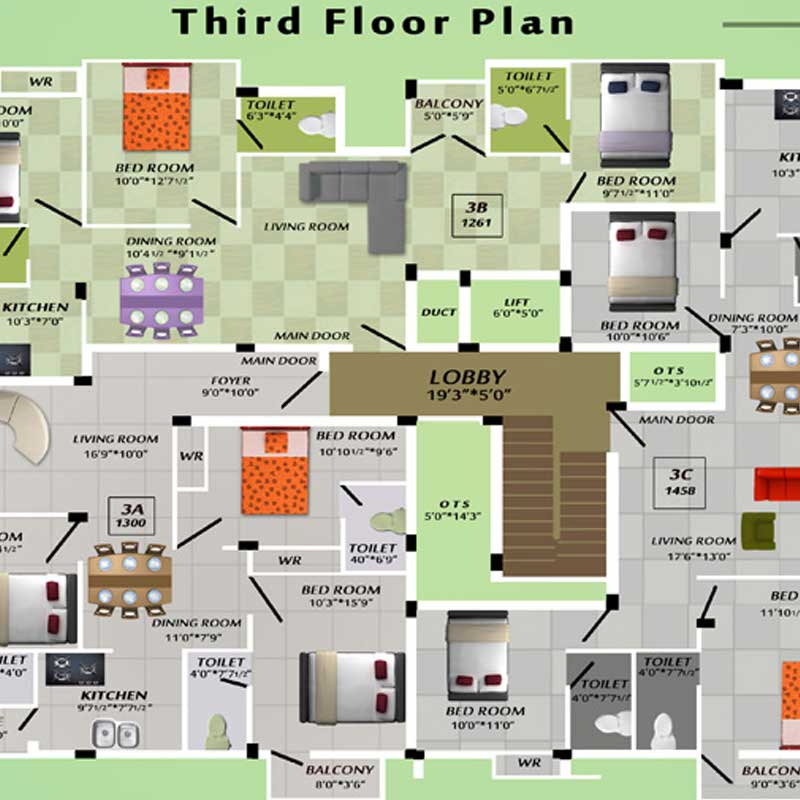

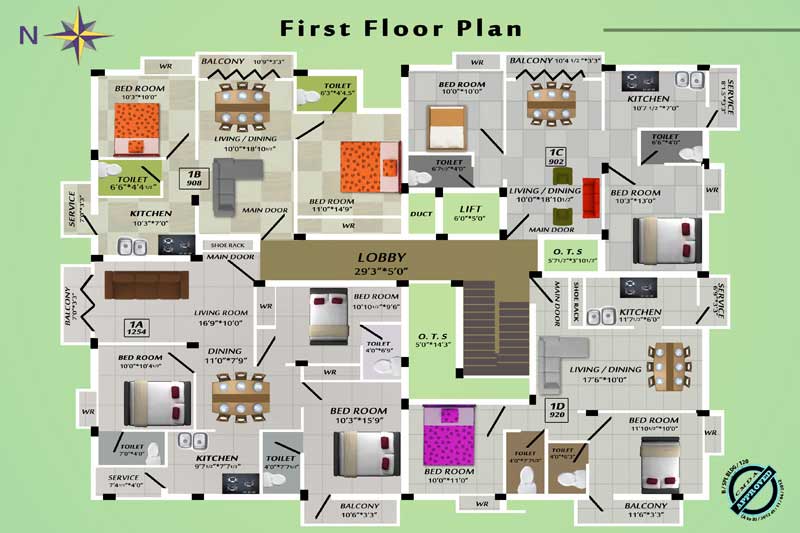

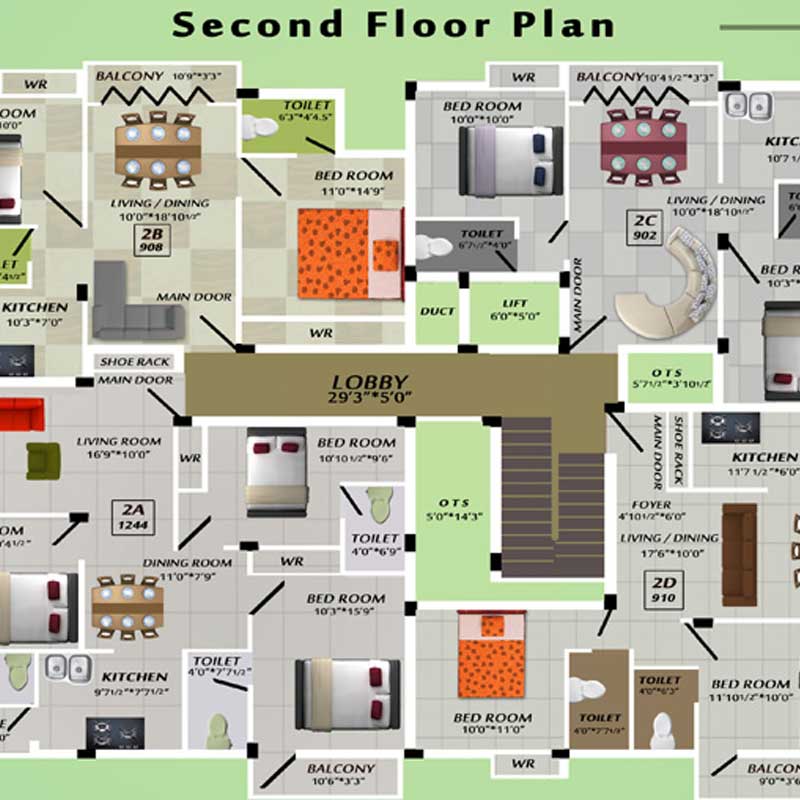

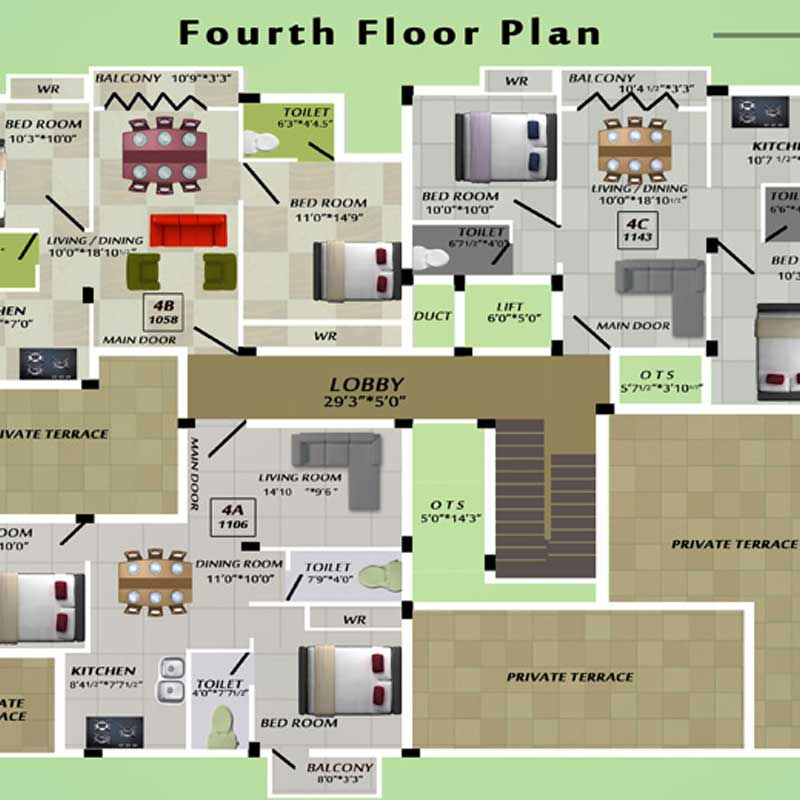

Floor Plans
Specificiation

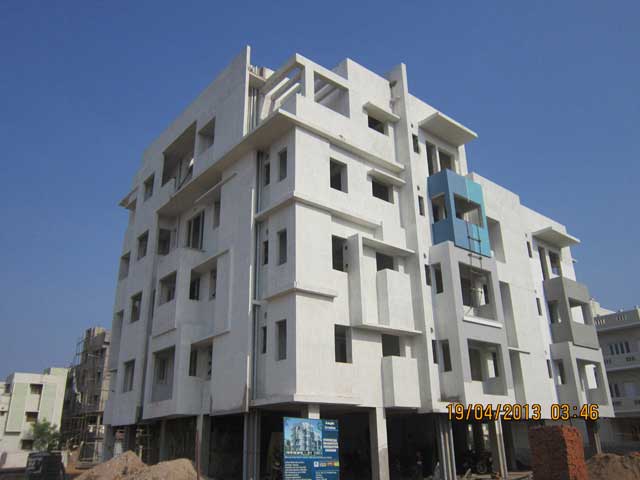

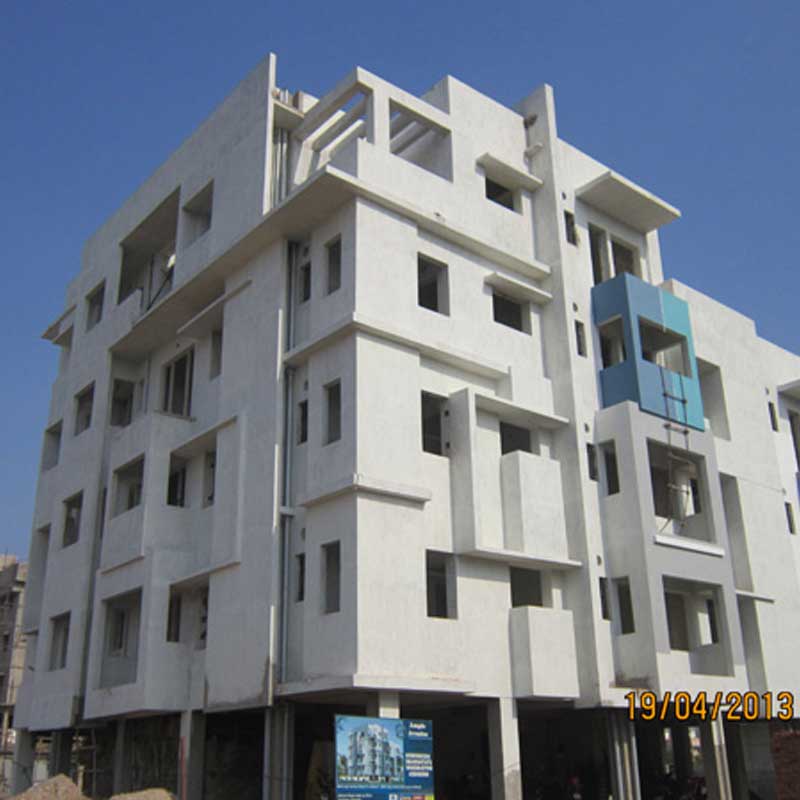

Structure :
RCC framed STILT + 4 FLOORS with Earthquake Resistant Seizmic Design as per IS 1893 -2002 structure.
Walls :
Internal walls Good quality first class chamber bricks used 4.5” brick work with CM 1:4 mix using 6mm rods in intervals provided on walls to avoid wall cracks. External walls 9”thick with 1:6 CM mix
Plastering :
Internal walls :
Inner plastering with CM 1:5 mix 15mm thickness with smooth finishing.
Extrenal walls :
Plastering exterior walls with CM 1:4 20mm thick and wood float finish.
Concrete :
All RCC Roofs/Coloumn/beams are concreted by Ready mix concrete 1:11/2:3 M20 grade concrete. With quality control check &Inspection prior concrete done by structural consultants and architects respectively for all stages.
Lofts :
RCC lofts at a height of 7ft from the floor level and width of 2’ft on one wall (on shorter side)

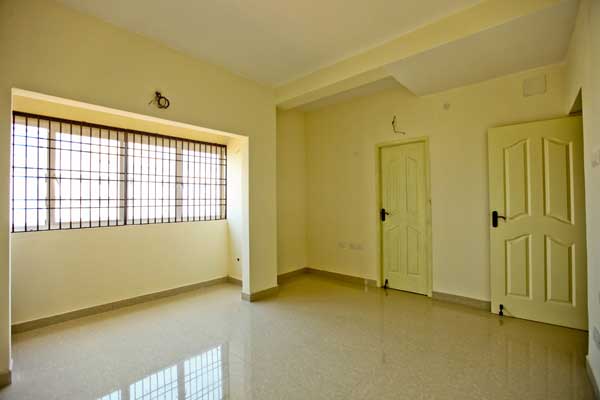

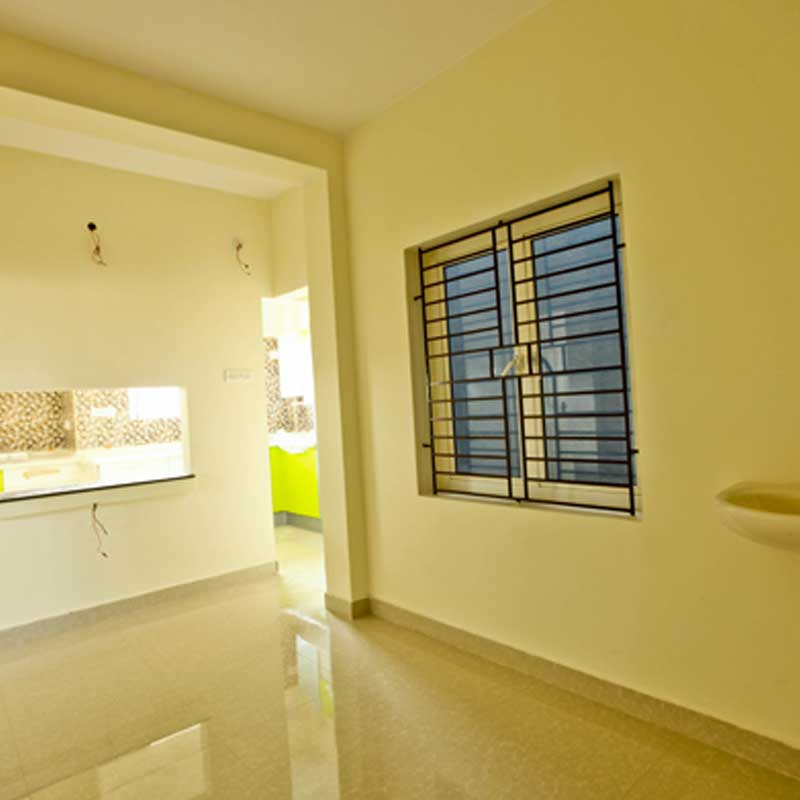

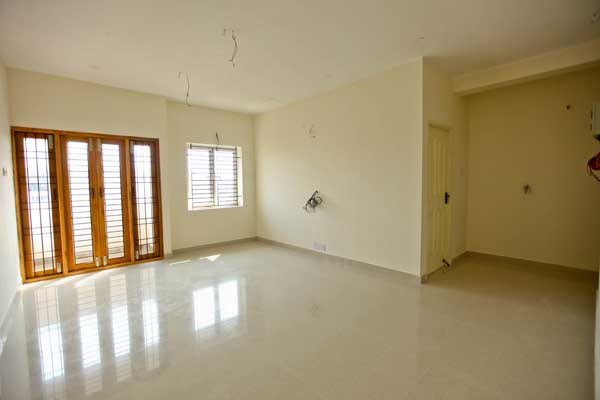

LIVING/DINING/KITCHEN :
Virtrified tiles good brand Johnson or equivalent 2’x2’will be used.
Balcony & Service area :
12”x12” anti skid regency or equivalent.

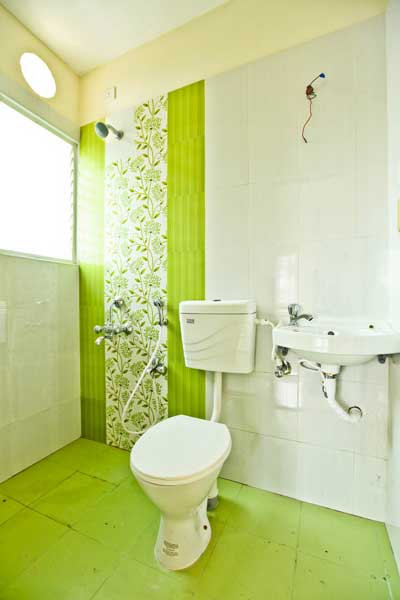

Toilet floor :
10”x10” anti skid tiles.
COMMON AREA :
Marble or Sabbath provided
WALL TILING:

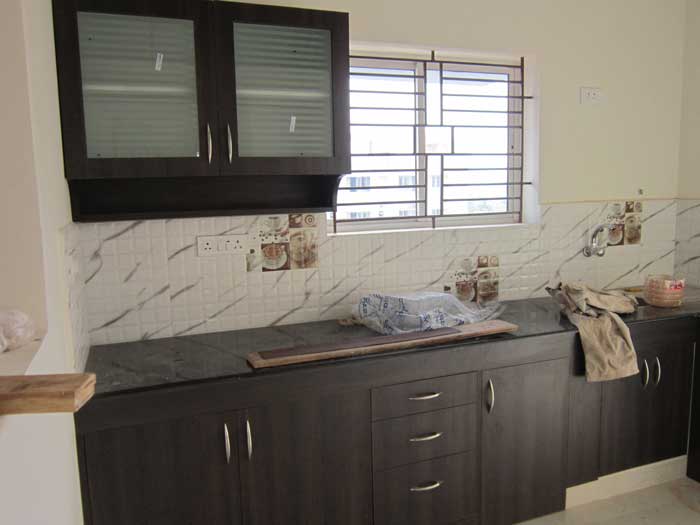

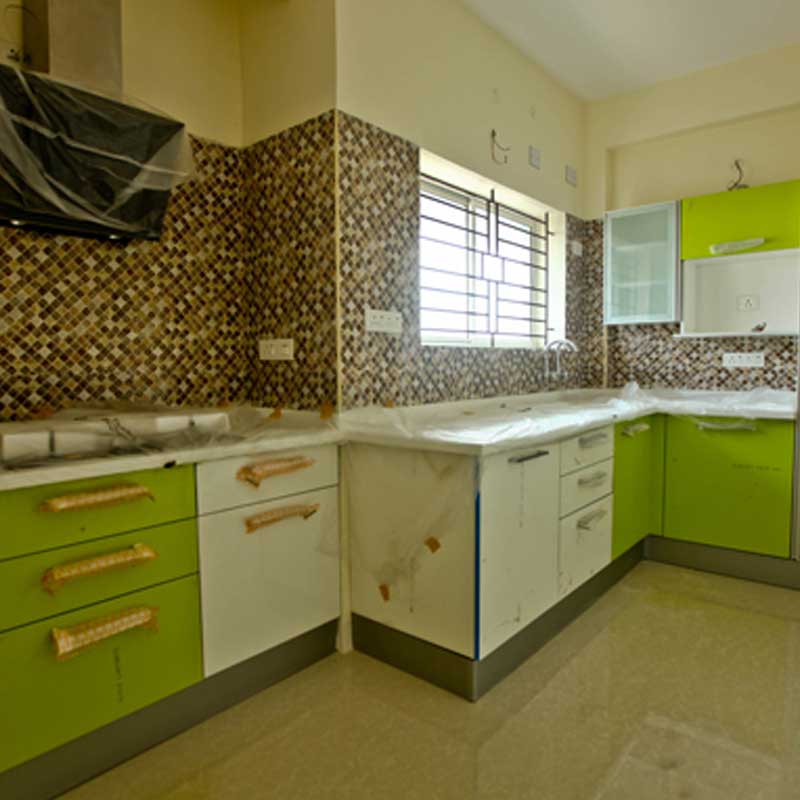

Kitchen :
Glazed tiles for 2’ft height above the platform level size 12”x8”

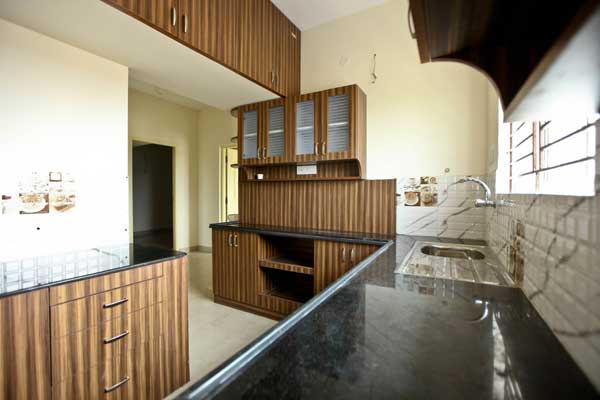

Kitchen Platform:

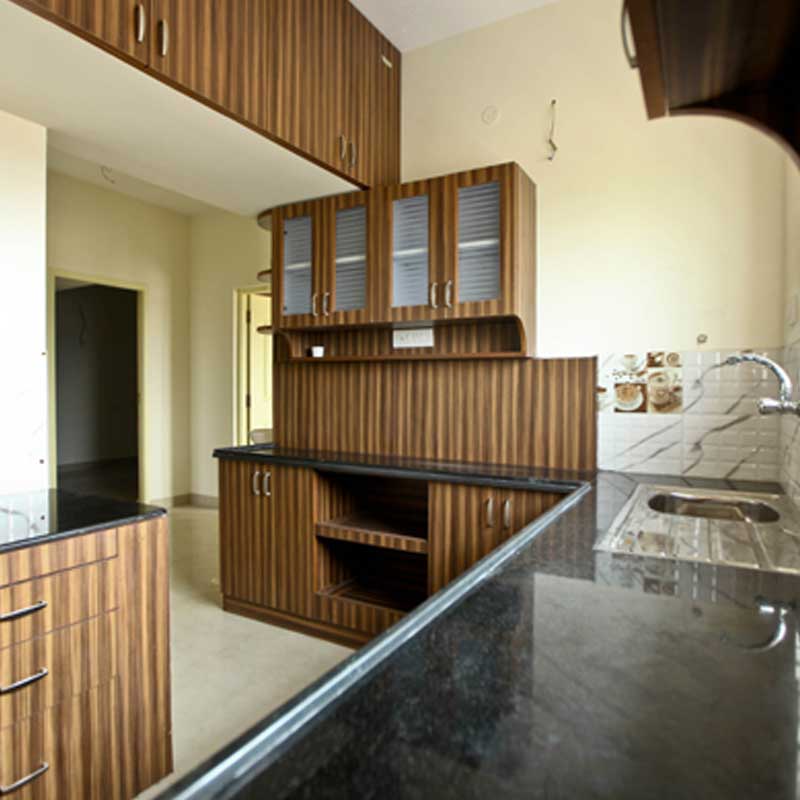

Quality black granite slab 2ft wide with 32”inch height from the finished floor level with s.s. sink of good quality with drain board provided.

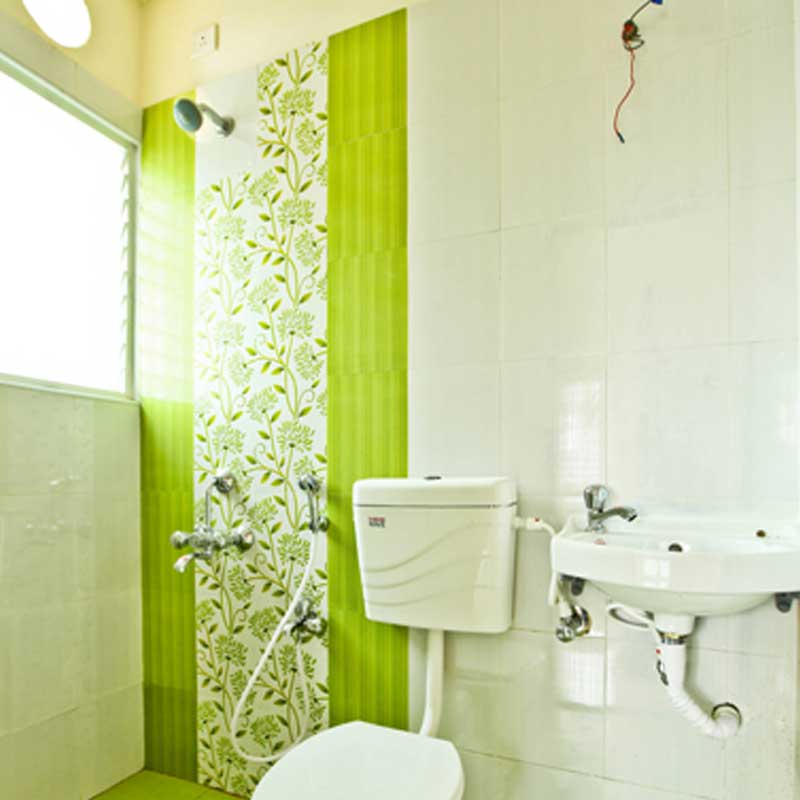

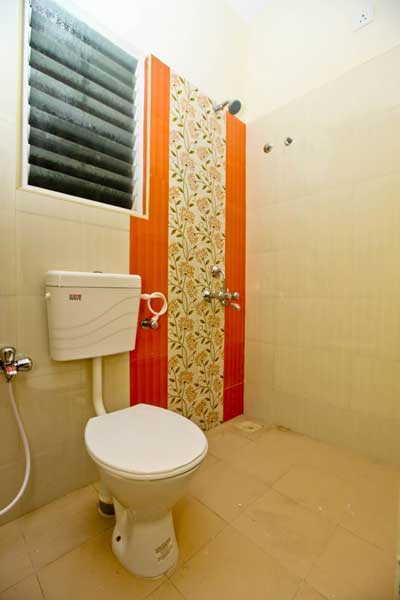

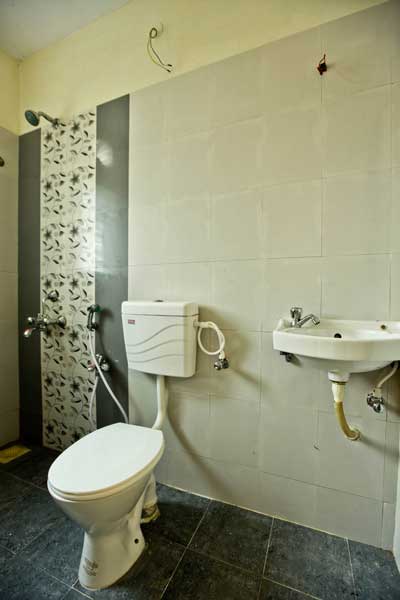

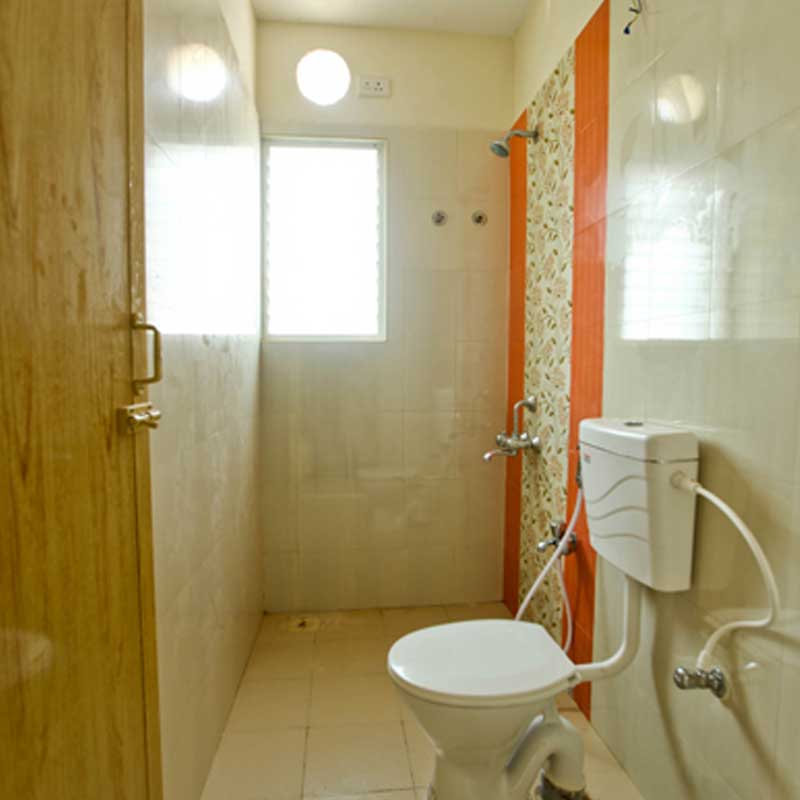

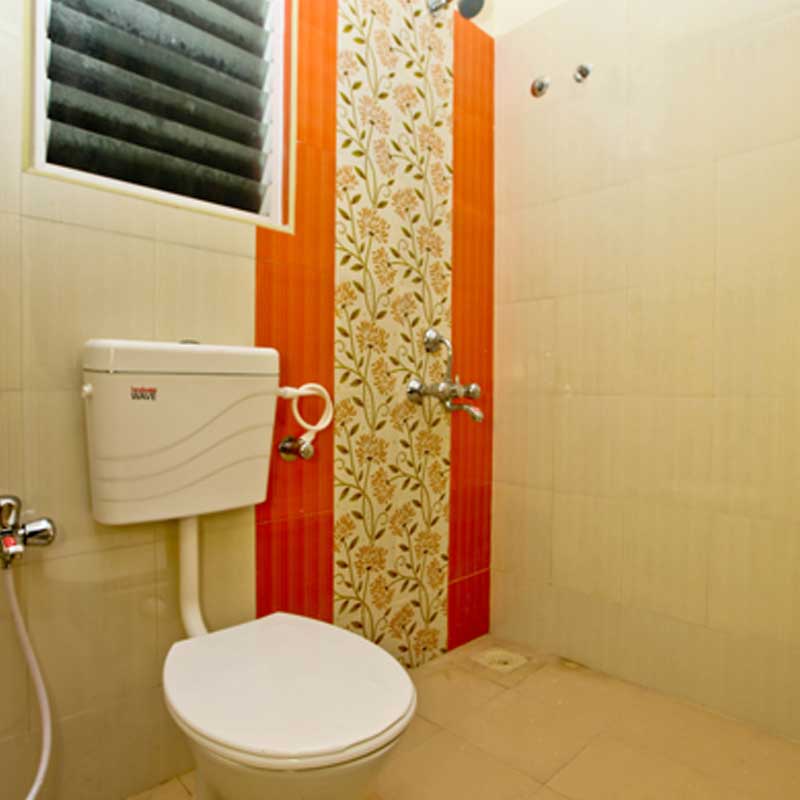

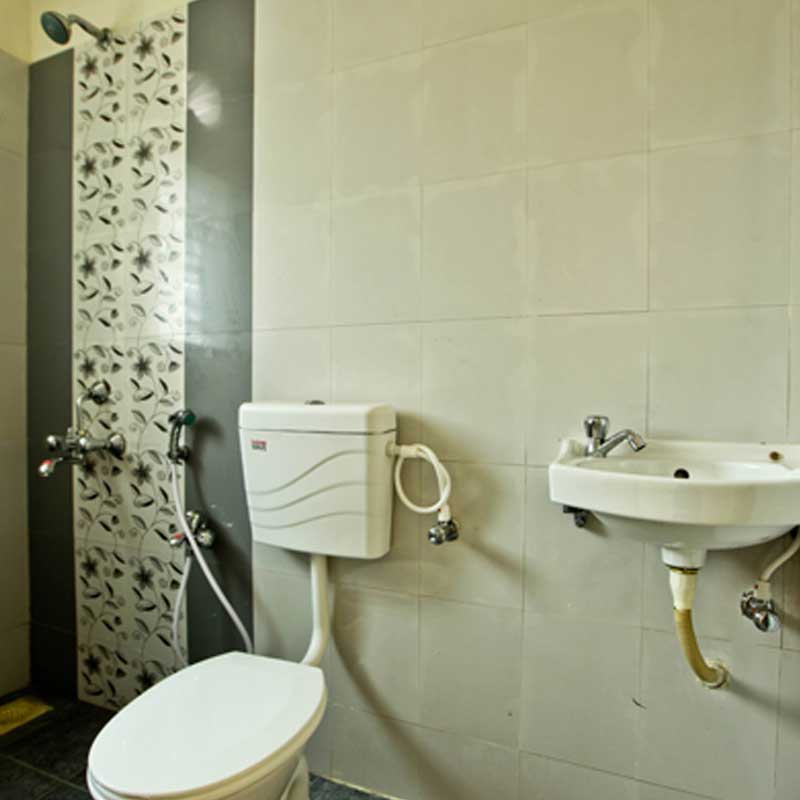

Toilet walls :
Glazed tiles 10x13 KAG or Equivalent make provided upto 7’ft height from the floor level.

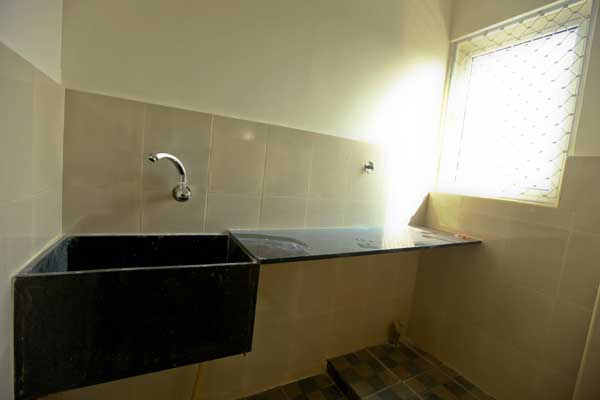

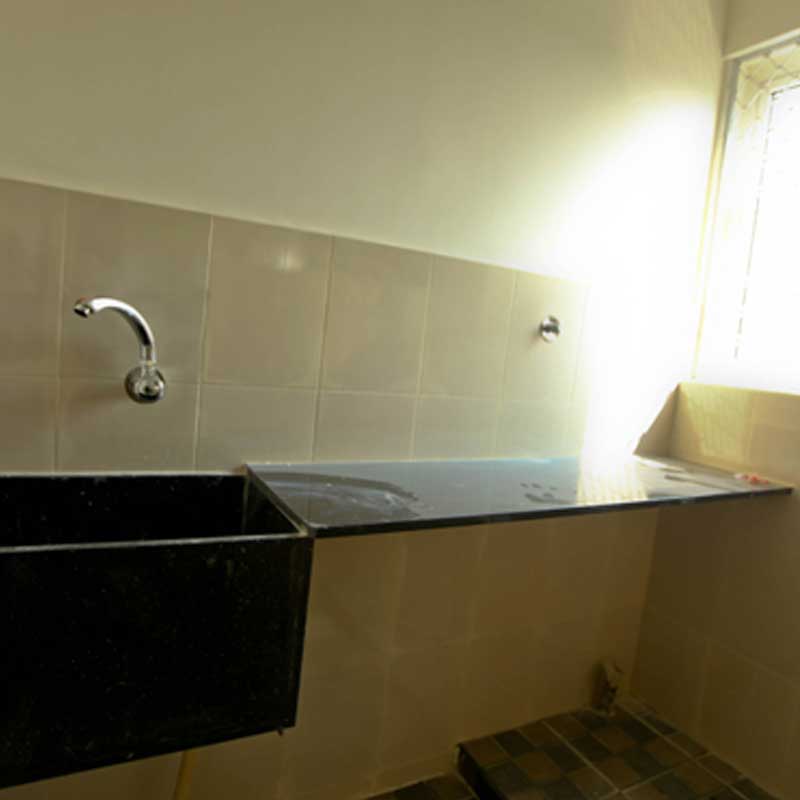

Wash Area (if provided) Pastel coloured glazed tiles upto 2’ft height.
SANITARYWARE :
CLOSETS:
Hindware /Parryware slimline model standard white colour (colours charged additional).
Wash basin:
Hindware / Parry ware (white colour) In 2 BHK flat one provided in MBR and one in Dining hall.
In 3BHK one in Dining and One in MBR.
C.P.FITTINGS:
HINDWARE OR JAQUAR OR EQUIVALENT.
PLUMBING :
1. Concealed PVC pipelines for bathrooms of high quality schedule kg of finolex or equivalent used.
2. CPVC pipes for Hot & Cold water used of good quality make.
3. Sewage water pipelines of ISI brand for under ground drainage system. with chamber wherever necessary and connected to septic tank
4. Bathrooms with bore well /U.G sump water compactable.
5. Kitchen with U.G sump water for Aqua Guard connection.
Painting:
1.Internal walls :
1 coat with white cement and 2 coats of quality putty with 1 coat of primer and final with 2 coats of Interior Emulsion.ASIAN / NEROLAC brand used.
2.External walls :
ACE exterior cement based .
3.Main door :
Teak wood melamine polish.

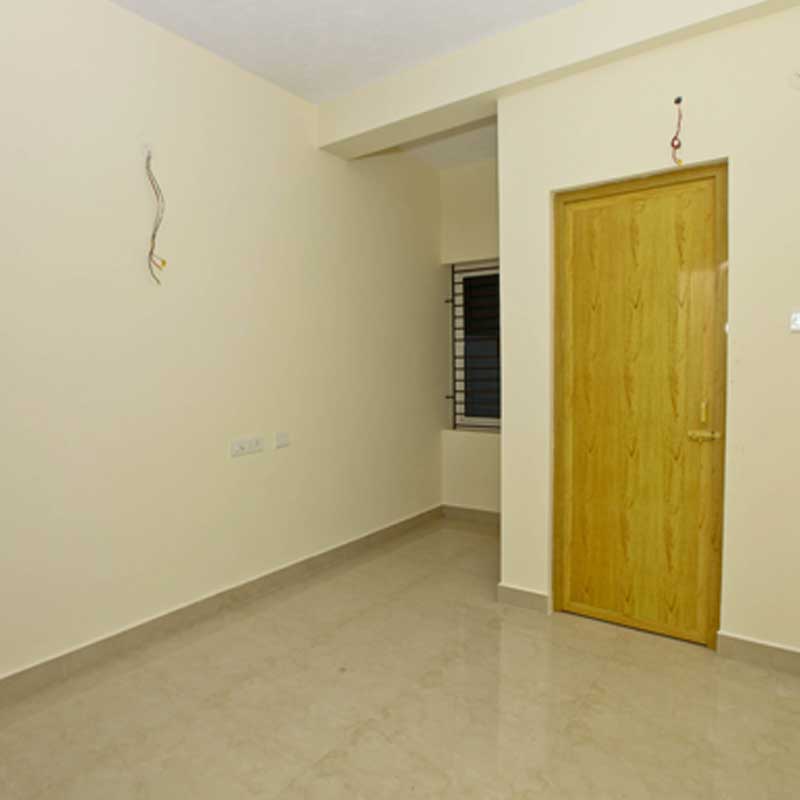

4.Bedroom doors :.
Enamel painting doors.
Common Area:
OBD over putty.
5.Window / balcony grills :
enamel paint.
JOINERIES:

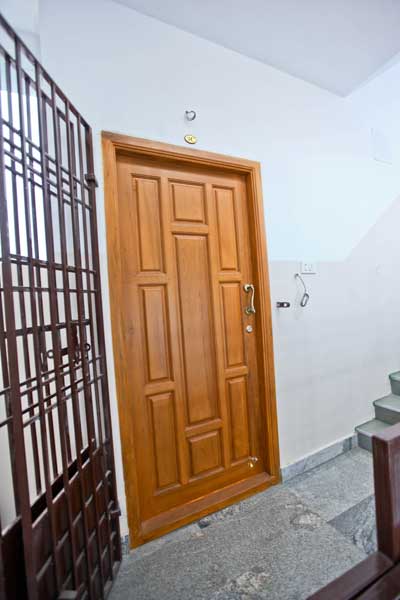

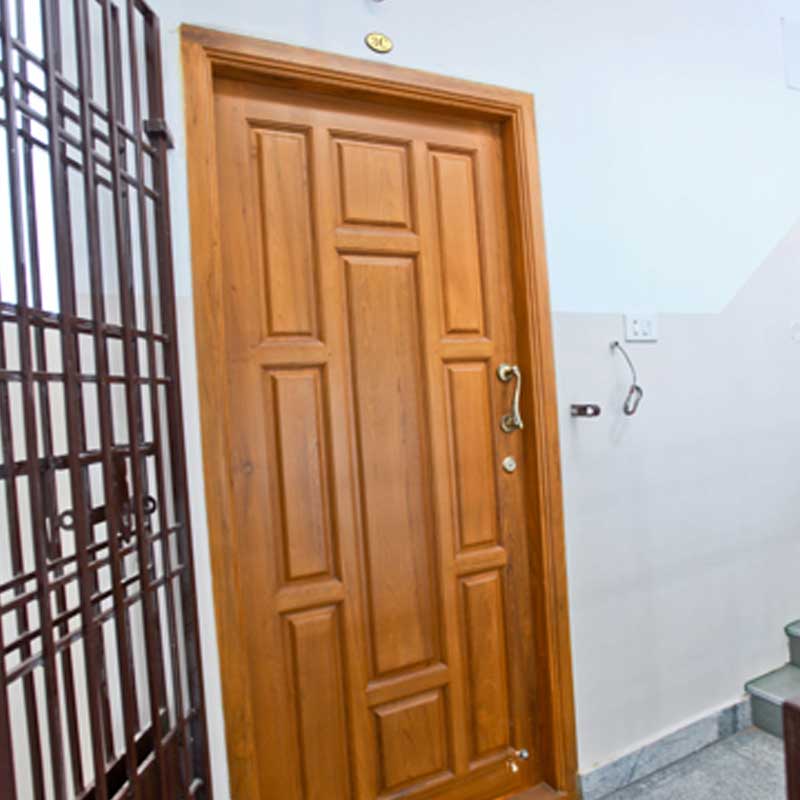

Main door:Teak wood frame and door with brass handles and hinges with godrej vertibolt lock 2 way locking system.

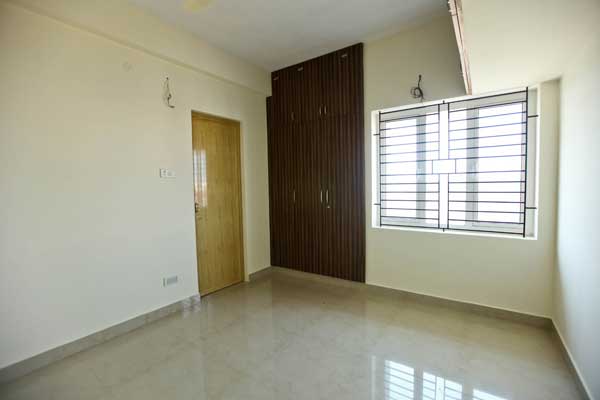

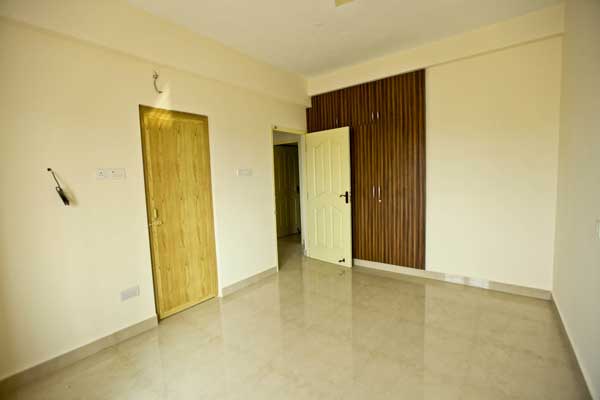

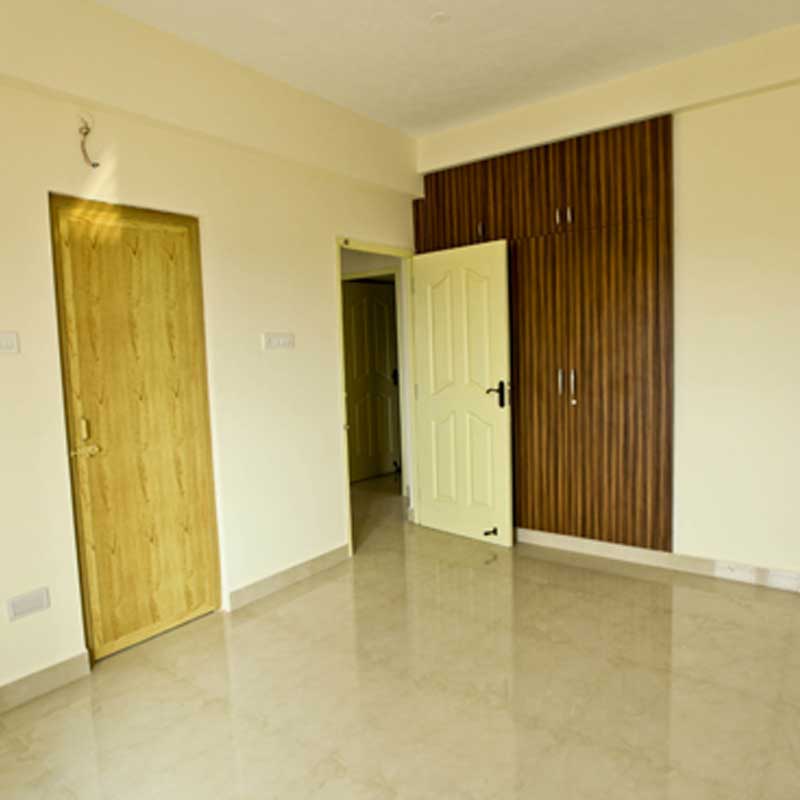

Otherdoors:Country wood frames with solid core and moulded skin doors with mortise lock of good brand.
Bathroom:PVC single panel or water proof ply wood doors.
WINDOWS:European style aluminium windows of UPVC style with ms grills 4mm thick glass.Balconies either European sliding door type or first quality padak wood frame with shutter provided.
ELECTRICAL:
Cables: concealed PVC conduit cables Polycab or Finolex or equivalent used.
Switches: Modular switches Anchor Roma or equivalent.
A/c Facilities: Electrical provision for split in all Bedrooms and living.
3PHASE supply for all flats with indo asian make DB with ELCB leak proof and circuit breakers for all apartment.
Power points: (15A) Fridge,Grinder ,Microwave and (5A) Aqua guard point in kitchen ,exhaust points in kitchens and all bathrooms.
Living/dining/bedrooms:Sufficient and necessary points provided.
Communication: Telephone /Internet: Living /MBR/Telephone jack in all bed rooms. TV point: Living /MBR.
GENERAL :
SUMP: Adequate capacity as per detail with motor provided.
O.H.T: Over head tank with separate partition for bore water and metro water.
Terrace: With cloth drying wires provided.
Staircase & Balcony grills: As per architect details.

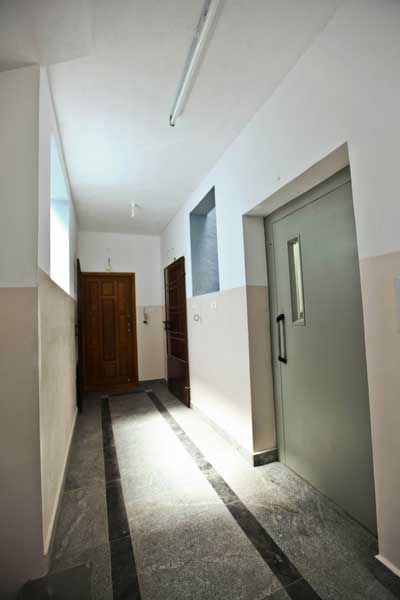

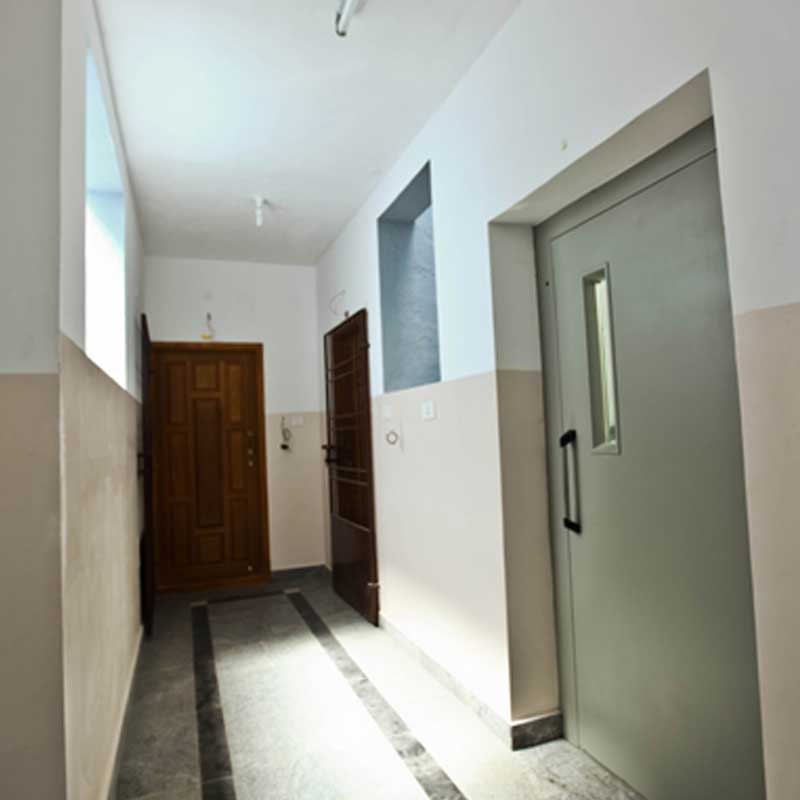

Common area: Lights provided in lift landing, Car park, Compound walls.
CarPark: Granolithic flooring with grooves cut and finished.
Runway: Good quality pavers used.
Soakpits: For kitchen and bathing water.
Septictank: With adequate capacity provided.

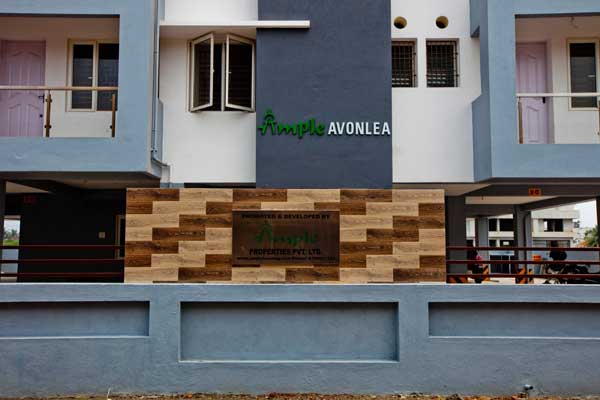

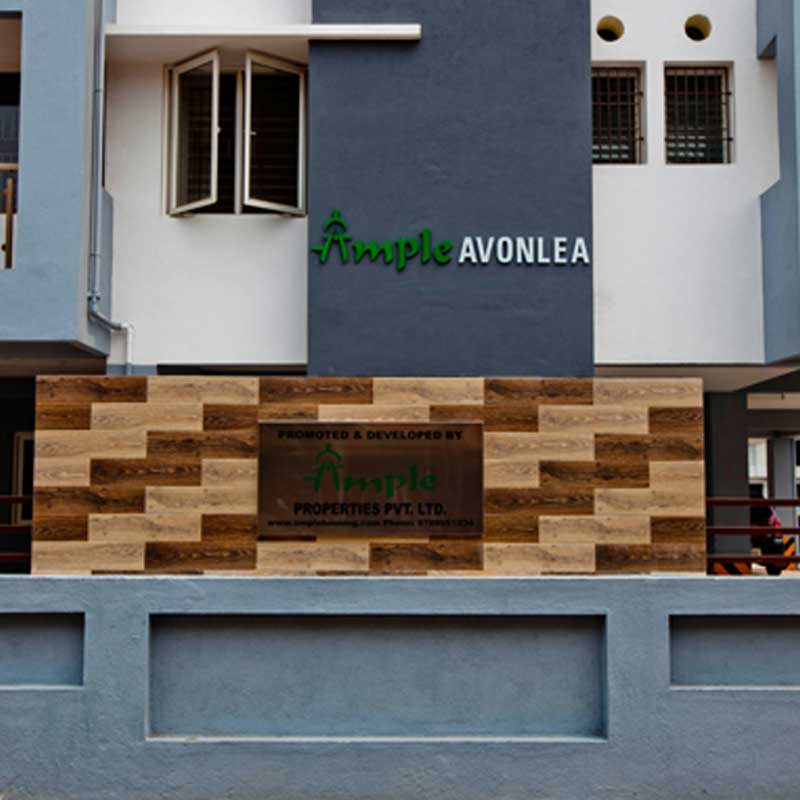

Gate/Name board/Letterbox/exterior lighting:As per architect details.
COMMON AMENITIES:
STILT + 4 FLOORS with Anti Termite foundation.
JOHNSON LIFTS with power back up V-3F Drive.
Back up Generator for utilities like lift common area lights and 100 watt for each apartment
E.B with 15 meter + 1 common meter with complete panel board set up.
Invertor wiring in built in all flats.
Association Hall.
Piped Gas supply.
Video door system with central system.
Driver’s/Domestic help toilets in stilt floor.
Land scape( wherever applicable).
OPTIONAL(chargable) :
1.Modular kitchen ,Interiors.
Corporation CMDA Approved Project.
HDFC Approved and Loans arranged.
Carpark, EB, Regn sales tax charged as extra
