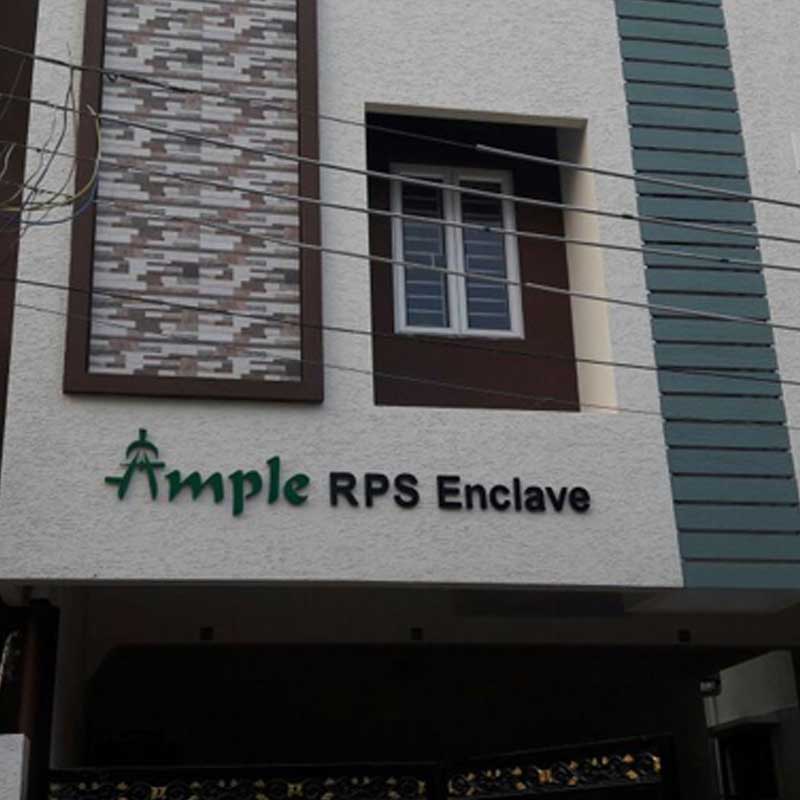

Ample RPS Enclave

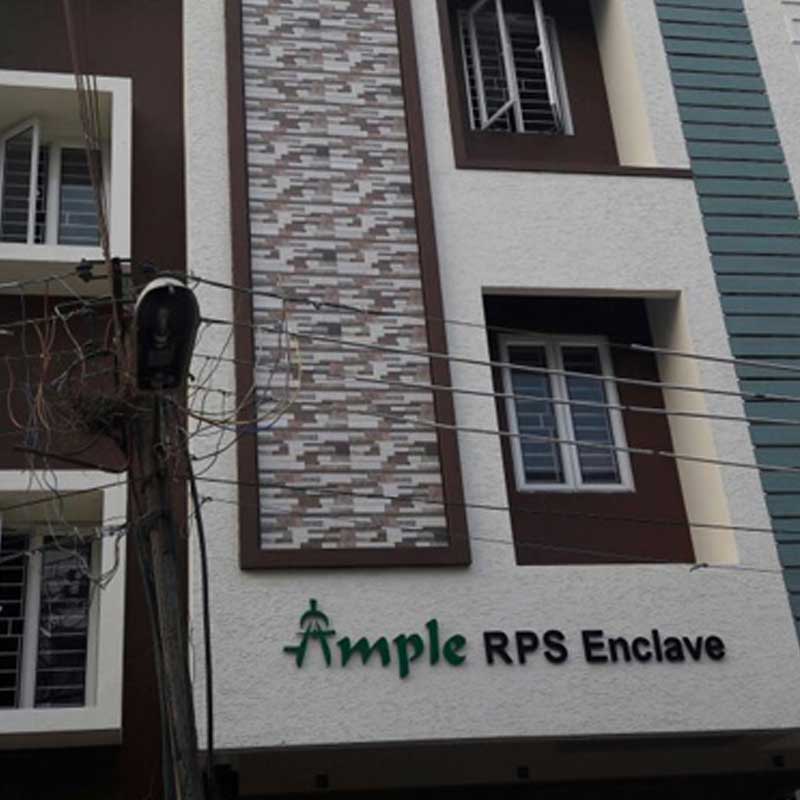

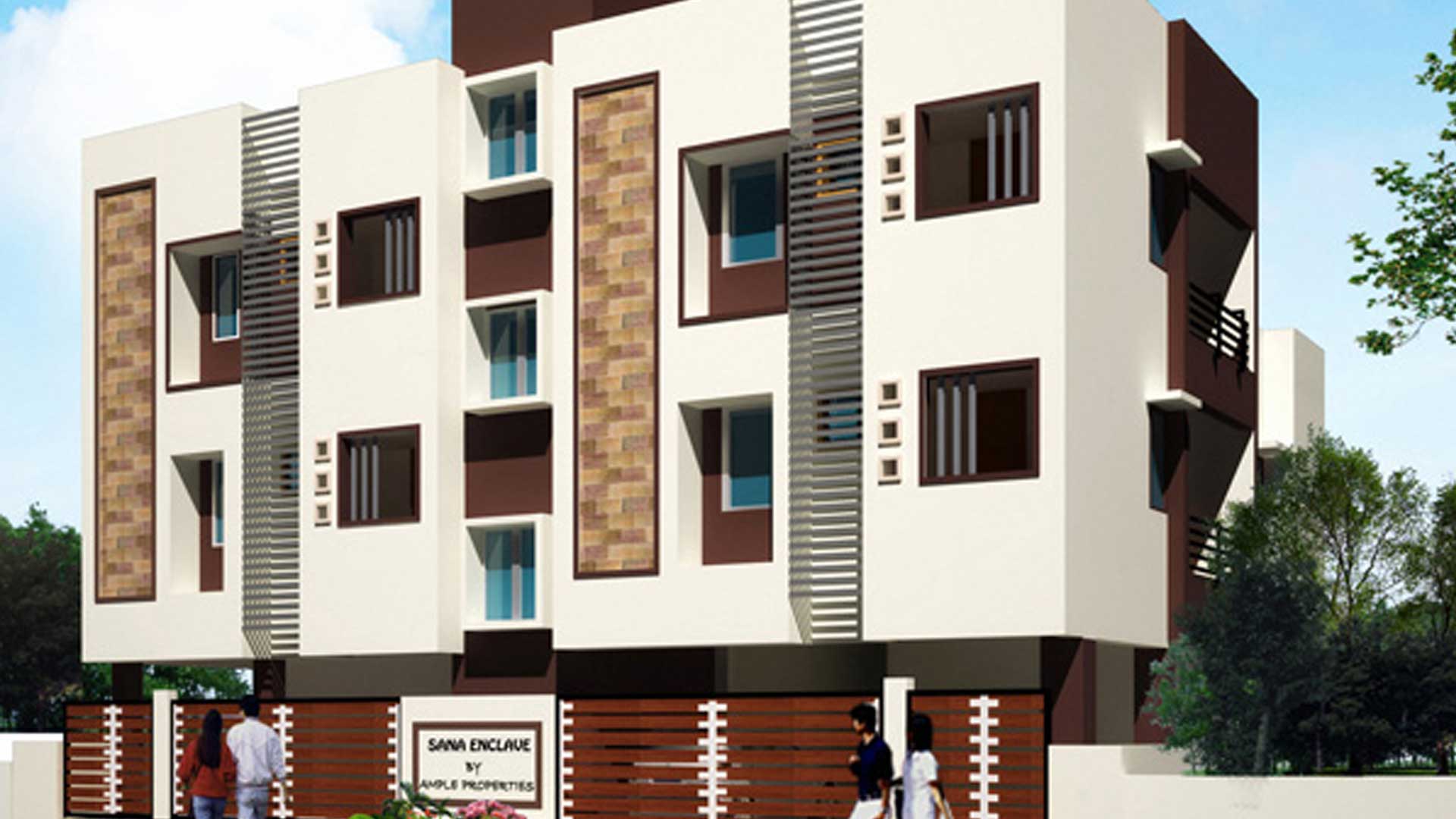

Elevation
Site Address

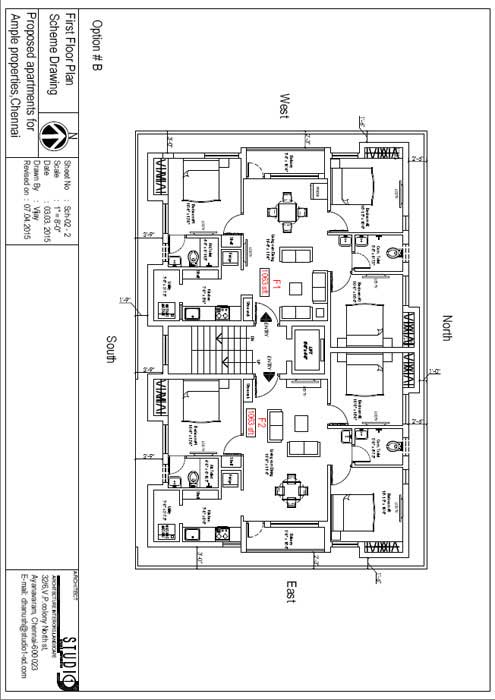

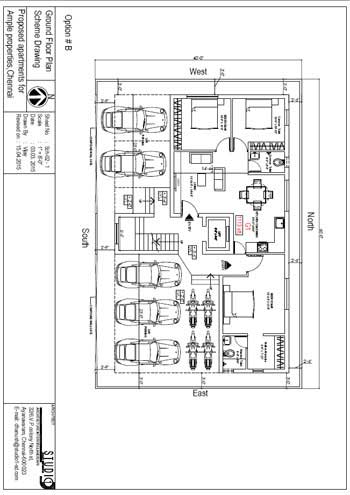

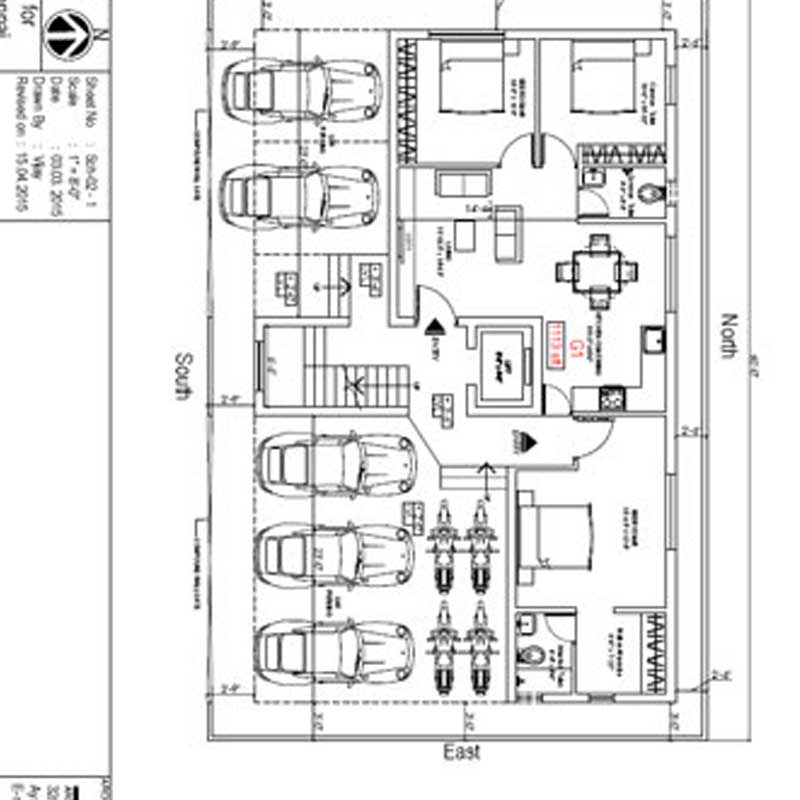

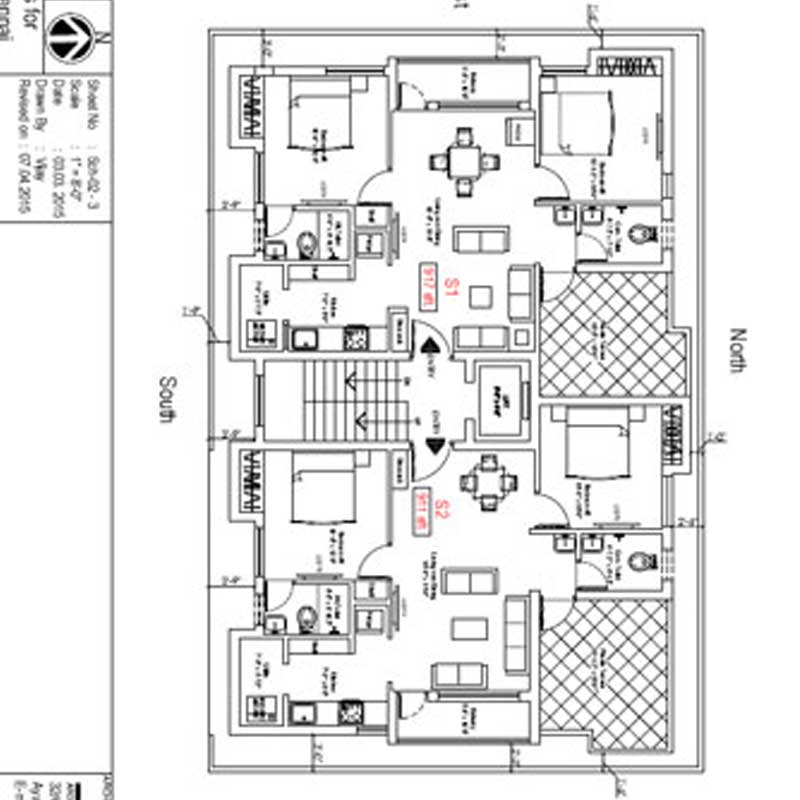

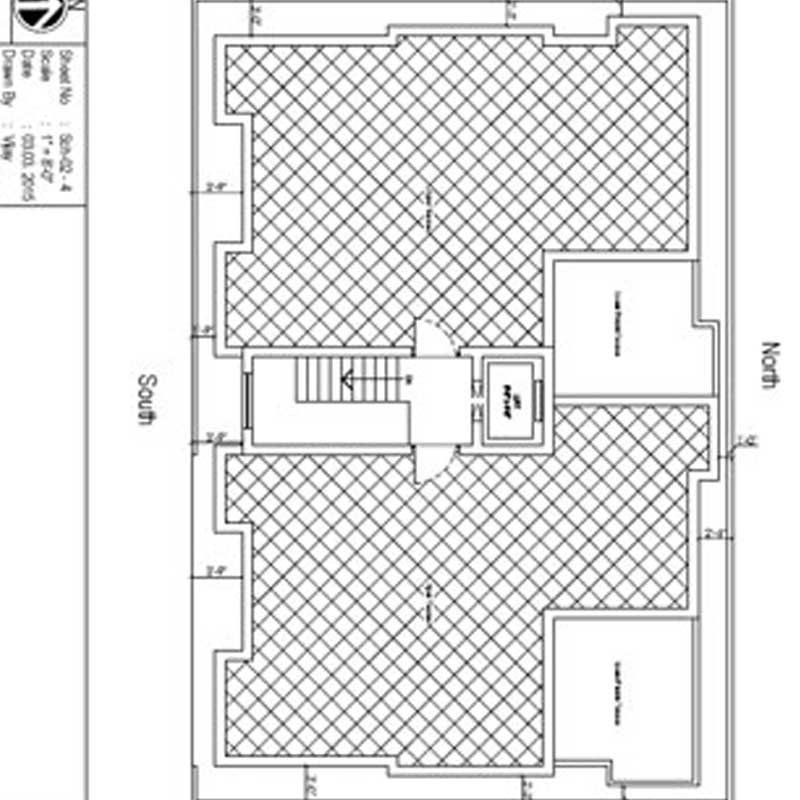

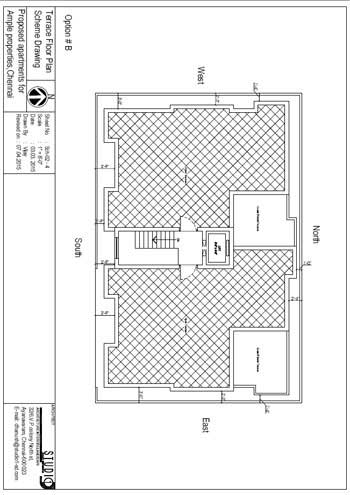

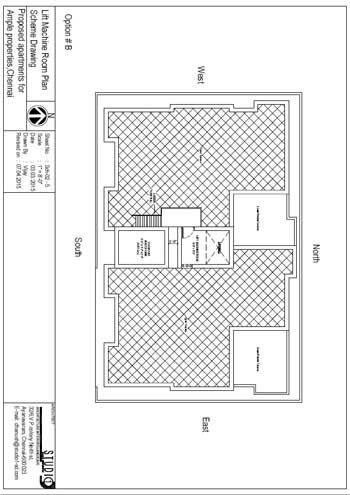

Floor Plans
Specificiation
CIVIL:
1. RCC STRUCTURE WITH EARTHQUAKE RESISTANT SEIZMIC DESIGN code applied.
CONCRETE:
LL RCC FOOTING/SLAB / BEAM/ COLOUMN are done by machine mix ratio 1:11/2:3 M20 grade concrete with proper side plywood board shuttering bottom Wooden planks and PROPS and SPAN used for centering.
REINFORCEMENT:
STANDARD ISI BRAND WITH FE 500 GRADE USED as per structural detailing in all stages.
BRICK WORK:
OUTER WALL 9”1st class chamber bricks tested and used along with thickness 1:6 RATIO
INNER PARTION WALL 4.5” chamber bricks used with thickness 1:4 RATIO using hoop iron mesh in every 3ft intervals to avoid wall cracks in future.
LINTEL&LOFTS: 7ft form the floor lvl Loft width 2ft on one side wall will be given (shorter side)
COLOUMN &BEAM: All column and beam joint chicken mesh provided and all electrical junctions mesh will be provided.
Flooring:

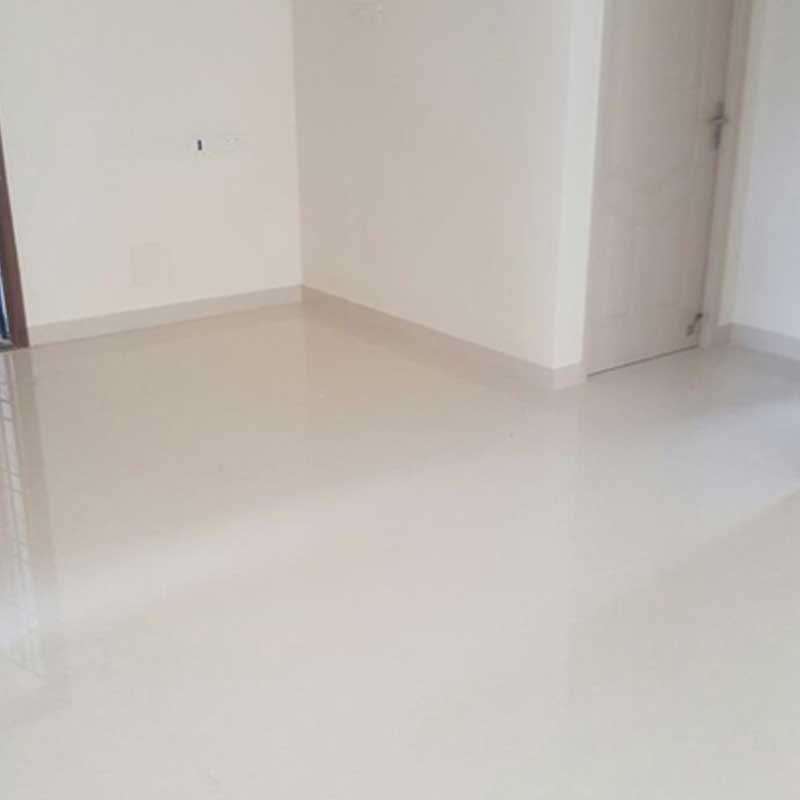

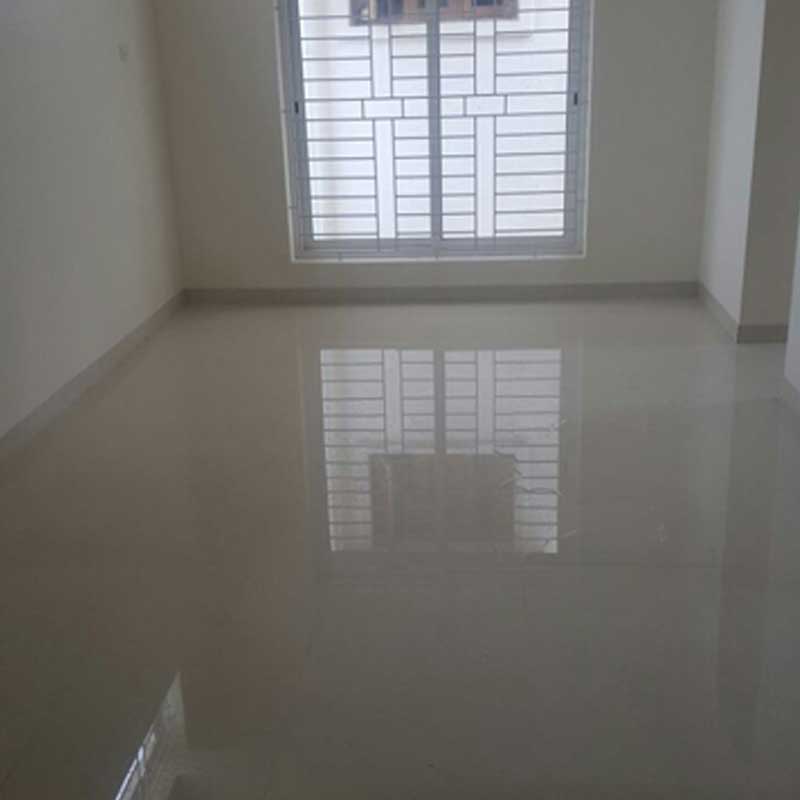

LIVING/DINING/KITCHEN: VIRTRIFIED NANO STAIN FREE DOUBLE CHARGED TILE OF GOOD IMPORTED BRAND USED OF 2X2
BALCONY /SERVICE: 1X1 ANTI SKID

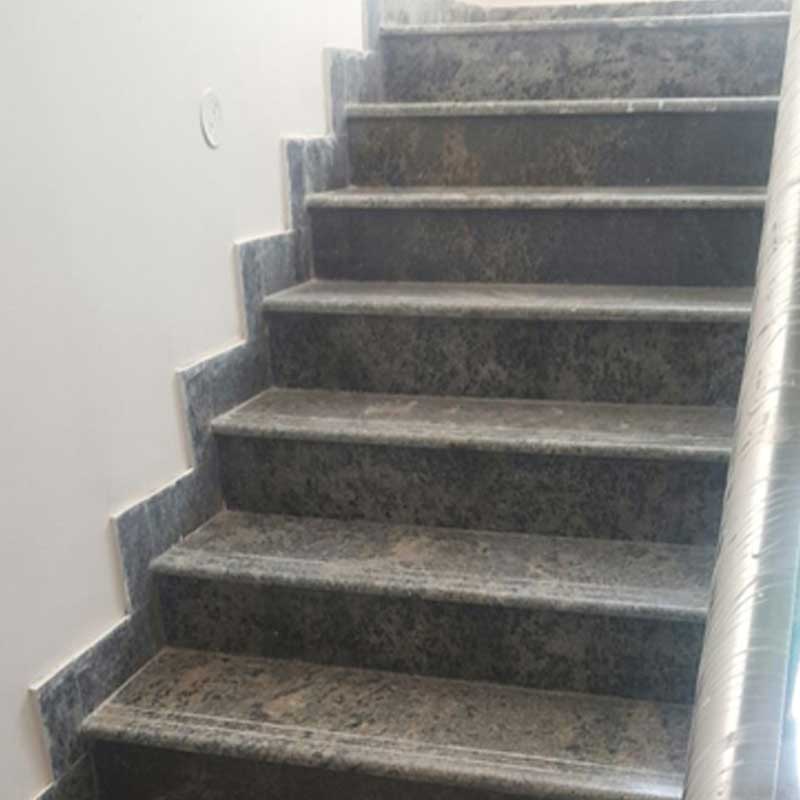

COMMON AREA /STAIR CASE: GREEN MARBLE POLISHED STONE PROVIDED
LOBBY: GRANITE OR MARBLE PROVISION

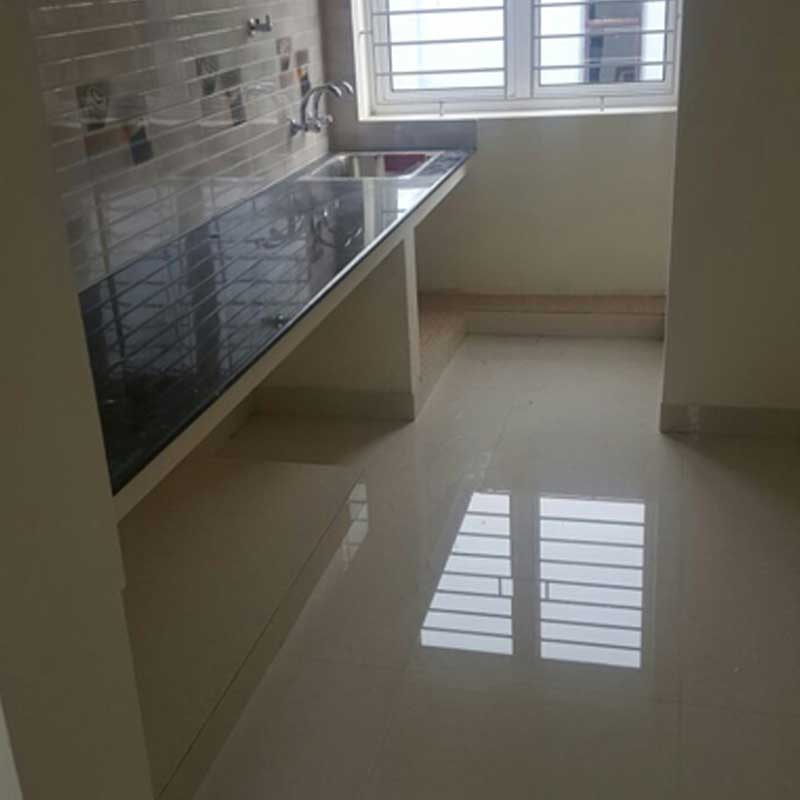

KITCHENWALL: GLAZED TILE UPTO 3FT FROM THE COUNTER LVL 15X10
COUNTER: BLACK GRANITE SLAB 2FT WIDTH WILL BE PROVIDED WITH S.S SINK WITH OR WITHOUT DRAIN BOARD.
TOILETS:
WALL TILES: 15X10 concept DIGITAL tiles of reputed brand Johnson or equivalent to be used tiling to be done up to 7’ft height for all toilets.
FLOOR: 1X1 or 10”x10” as per style code of wall tiles ANTI SKID
SANITARYWARE:CLOSETS/WASH BASINS:
CLOSETS/WASH BASINS
CLOSETS/WASH BASINS:
HINDWARE / PARRYWARE SLIMLINE MODEL standard white color (color charges additional)
Provision of Wash basin from builder: 1 basin for dining / 1 in master bed room. (Color charges additional) C.P FITTINGS: HINDWARE CONTESSA SERIES PROVIDED each toilet with
1.2in 1 wall mixture
2.Shower arm with rose
3.Health faucet
4.Geyser concealed stop cock
PLUMBING:
1. Concealed PVC outer pipeline for bathrooms of high quality of schedule kg finolex brand used.
2. CPVC concealed lines in all bathrooms for Hot &Cold water ASHIRWAD brand used
3. Sewage pipelines of ISI brand for underground drainage with chamber provision and connected to septic tank.
4. O.H.T with bore water and Sump water provision and UPVC FINOLEX brand for water line for OHT inlet and outlet in terrace used.
5. Kitchen with Bore water and sump water taps.
6. U.G sump with 12000 liters capacity
7. O.H.T as per LPCD capacity
WATER PROOFING:
1. All bathrooms are treated by waterproofing chemical properly cleaned and treated in all the inlet and all out let joints to avoid and protect leakage in roof for future.

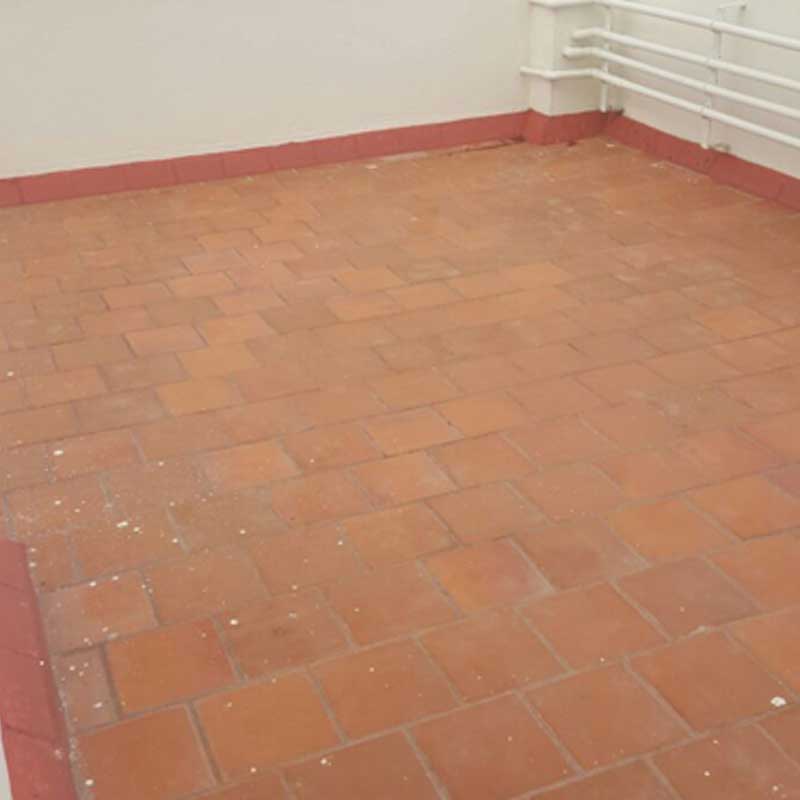

2. Terrace is also treated by waterproofing to avoid leakage and heat protection tiles provided. Mangalore 1st quality tiles layed on top.
3. U.G SUMP water proofed
4. Lift Pit Water proofed.
PAINTING:
INNER WALLS: coat with white cement/2coats with Birla putty/1coat with Asian wall primer and final with 2coats with ASIAN tractor emulsion.
OUTER WALLS: ACE exterior emulsion used.
MIAN DOOR: Teak wood polish with melamine finish
Bedroom doors: Enamel painting with matt finish on both the sides.
Common area:OBD with putty finishing and emulsion painting done.
Window grills: Enamel paint.
JOINEIRES:
Main Door: 1st quality Teak wood frame with shutter with brass hinges, Tower bolt, Eye viewer and godrej vertibolt 1way lock provided.
Bedroom/service doors:Molded skin door with mortise lock provided.
Bathroom door: PVC single panel or Water proof ply wood shutters with frame hardened provision with door handle provided.
COMMON AREA RAILING:
Design or Stainless steel hand rails provided as per architect design.
WINDOWS:
All aluminum European casement alutek Upvc like style sound proof windows provided with 4mm clear glass and handles.
ELECTRICAL:
CABLE: POLYCAB wires ISI BRAND
SWITCHES: Mk IVORY or equivalent SERIES Modular switches provided.
A/c Provision: In all bed rooms and in hall provided.
3PHASE SUPPLY WITH INDOASIAN CIRCUIT BREAKERS AND DB Provided.
Power points 15amps for fridge and 20amps for A/C
5amps for mobile charging and for other use provided
Communication : Telephone/Internet: Living /MBR and Common bed room
WOODEN COVERED TYPE PANEL BOARD PROVISION IN CAR PARK.
LIFT:

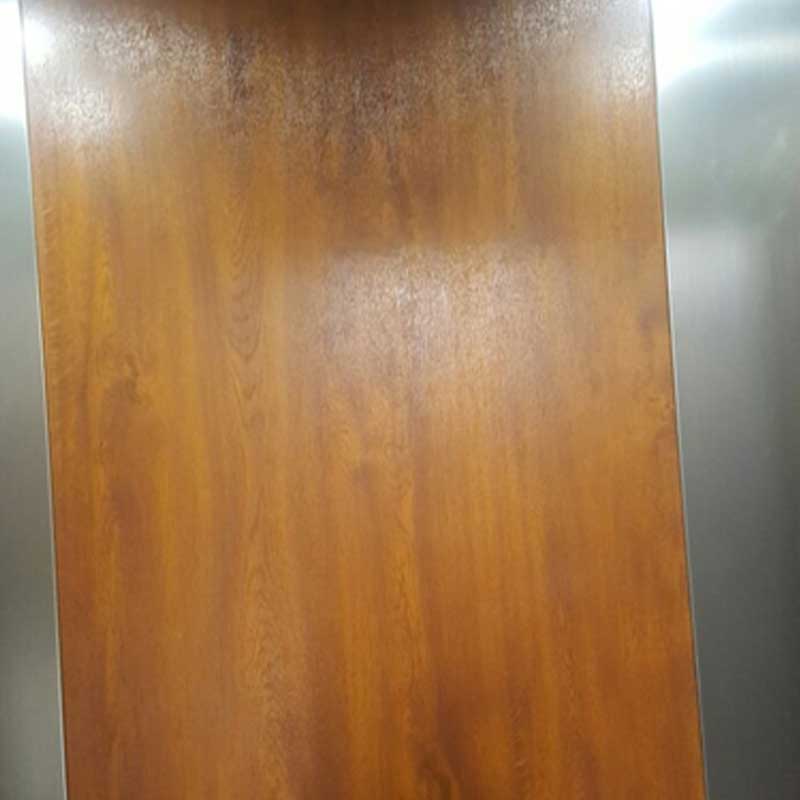

Johnson Automatic or equivalent brand double door auto opening with VF-3drive auto battery backup with 6passenger capacity provided.
QUALITY CONTROL:
• Site supervisor is present throughout the project and carefully executes the work with prior quality check.
• A site consultant also checks the supervisor performance and verifies the quality on weekly basis.
• All structural details are checked by structural engineers before the respective concrete stagewise. • Architect site visits done in all stages.
TEST REPORT:
Foundation Soil test done. Based on the soil report depth of foundation taken as per with soil N value.
In all M20 grade concrete works cube test taken for 7 & 28 days respectively and quality of concrete checked with external agency by doing compressive strengths. All reports available at site with site supervisor.
SLUMPCONE test is performed on the day of mass concrete for ROOFSLAB/BEAM/FOOTING/COLOUMN.
STABILITY CERTIFICATE ISSUED FOR THE ENTIRE RCC STRUCUTRE ISSUED BY PANEL STRUCTURAL ENGINEER
AMENITIES:
JOHNSON or EQUIVALENT AUTOMATED OPENING 6 PAX LIFT PROVISION VF3 drive with inbuilt emergency door opening.
CCTV IN STILT FLOOR LOBBY ENTRANCE- for security purpose
CORPORATION APPROVAL for 5units
INVERTER WIRING IN BUILT IN ALL FLATS
POSH LOCALITY with neat 23’ FT
QUALITY ASSURED CONSTUCTION WITH NO COMPRMISE.
CMDA APPROVED LAYOUT.
GENERAL:

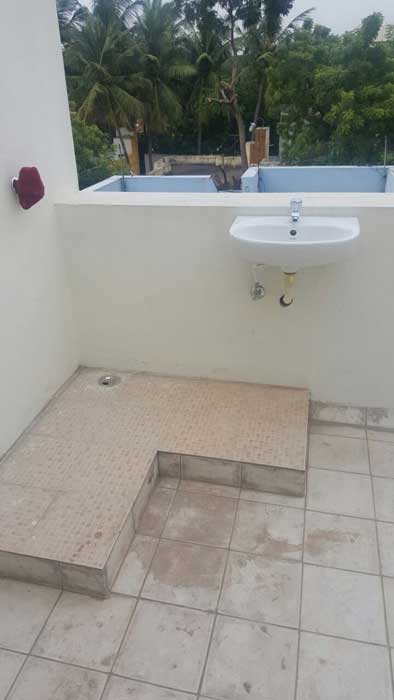

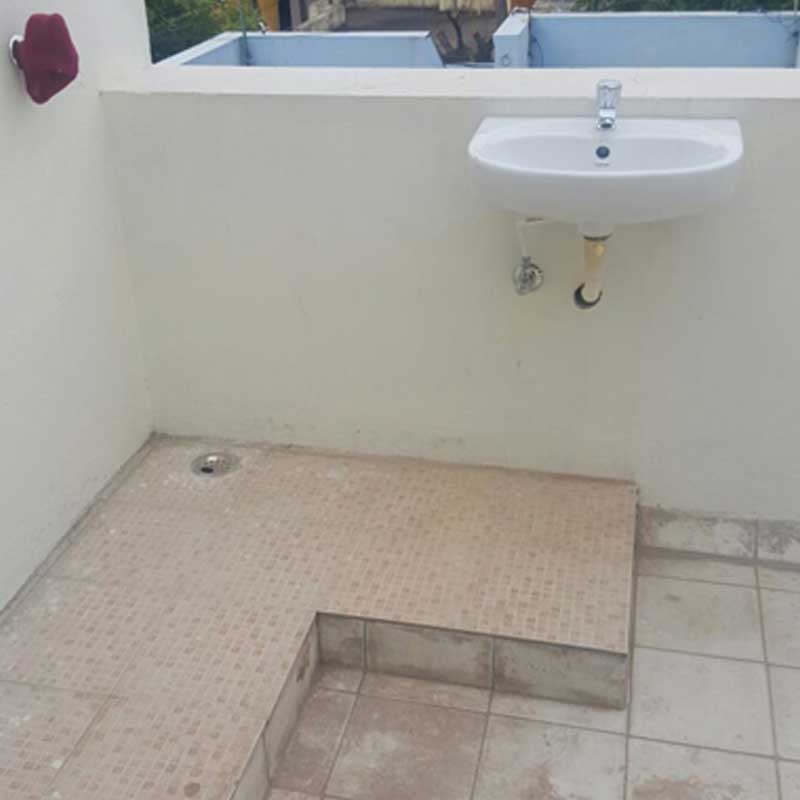

Terrace: Cloth drying wires provision
Staircase Balcony:As per architect details.
Stair case handle: MS COATED or S.S Handrail.
CommonArea : CFL light

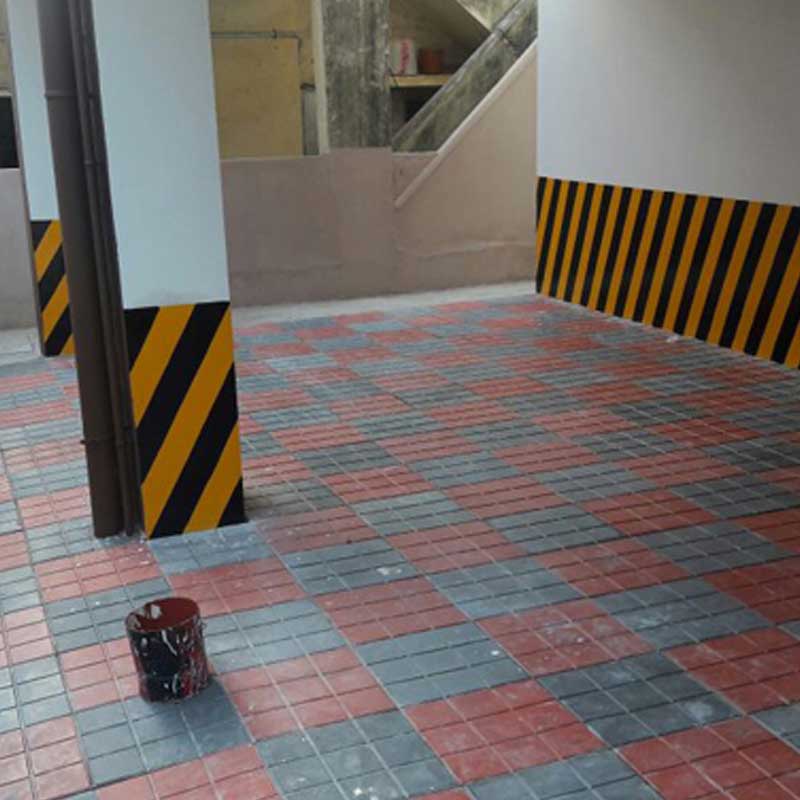

CarPark : Designer eurocon parking tiles provided.
Soak pits: For Kitchen and bathing water, Rainwater harvested.
Gate/Name board/Letter box: As per architect details.
Extra chargable:Modular kitchen/ extra grills.
No alterations permitted in scheme strictly.
